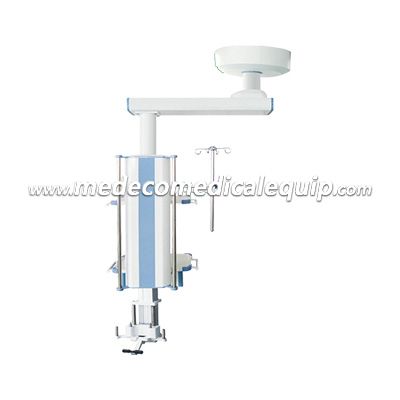

Electric Single-arm anesthesia pendant JHTMD

Inquire Now Next Product

documents & resoures

Detailed Technical Parameter
1. apply in operating room ,endoscope room ,anesthesia room and hospital wards so on 2. is available in single and double arm configurations .Each joint has a ratation range up to ≤350 degree. 3. Ceiling-mounted installation 4. Pendant column can be custom designed to accommodate a large variety of medical gas outlets and electrical device. 5. One arm, can rotation, rotation angle≤350 degree. 6. high-strength aluminium alloy,warewell reduce your cost 7. Pendant color :blue ,red and so on 8.Medical gas outlet optional German / British /America/Japanese/ French /Chinese standards. 9. can horizontal rotation ,cannot lift
Standard Configuration
Item	Parameter			Mark
pendant material	used high-strength aluminum alloy ,modular design ,surface electrostatic powder painting,prevent corrosive ,easy to clean			low maintenance，never rust
brake way	mechanical friction brake，			the pneumatic brake is optional， to make sure without drifting and easy to stop,insure safe
rotary arm length	single arm 1000mm		double arm 800+800mm	the arm length is optional
Rotary radius	≥650mm
loading capability	single arm (light)≥180kgsingle arm (Heavy) ≥250kg	double arm (light)≥150kgdouble arm (Heavy)≥220kg
shelf loading	≥60kg
equipment shelf	2pcs (with prevention of collision system)			quantity and height is optional
medical gas outs	O21，Air1，Vac*1 (for surgical)			for endoscopy	for anaesthesia
				O21,Air1,Vac1,CO21	O21,Air1,Vac1,CO21,AGSS*1
power socket	multifunctional 3pin 8pcs (220V 10 A,Legrand)			style and quantity is optional
net socket	RJ45 1pcs			quantity is optional
extension arm	1pcs			quantity is optional
basket (S/S)	1pcs
drawer	1pcs			automatic suction type
column length	800mm			length is optional
box pendant head length	650mm			length is optional
level degrees rotation	≤340 º
pendant body rotation	≤340 º
