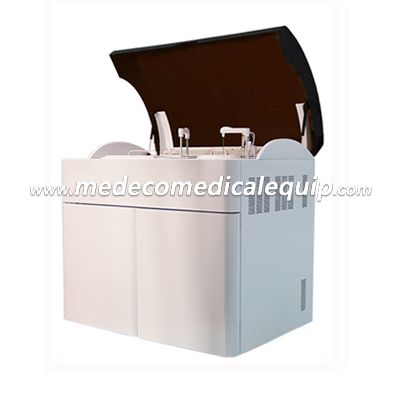

Auto Chemistry Analyzer ME-480(RUBY)

Share
documents & resoures

Auto Chemistry Analyzer ME-480(RUBY)


OverallPerformanceModelME-480(RUBY)
TypeVertical,Discrete,Fully automatic
Throughput400T/H
Analysis MethodEnd-point,kinetic,Two-point
CertificationCE, FDA, ISO9001, ISO14001, ISO13485
Sample & Reagent Unit Sample Positions120 sample positions
Reagent Positions90 pcs (With refrigerated function)
Sample Volume2-30ul,0.1μl step
Reagent Volume20-300μl,1μl step
Sample& Reagent Probe Automatic liquid level detectingCollision protection functionProbe internal/external washingProbe deepth automatic adjustmen
Probe cleaningAutomatic washing both interior and exterior
Reagent tray coolingContinuous 2℃~8℃ cooling within 24 hours
Reaction UnitReaction Time10 minutes
Temperature Control37±0.1℃,automatic heating
Cuvettes90 reusable reaction cuvettes
WashingAfter finishtesting, washing probe wash cuvettes automatically
Optical SystemLight SourceHalogen-tungsten lamp
Wavelength340-700nm,8 wavelengths,(4 positions are optional)
Absorbance range 0-4.00Abs
Linear Range0.0001Abs
Calibration and QCCalibrationLinear/nonlinear,one point,multi-point(Max 8 points)
Quality ControlQC plot automatically depict the function condition,show the QC results
SoftwareIntelligent softwareAutomatic washing cuvette when start test&finish test,Automatic detect sample& reagent volume,Reaction temperature detecting when startup
AlarmAutomatic alarm of no reagent,no sample,wrong run,out of linearity range etc, Automatic re-test sample in next order after no reagent
SoftwareWindows 7,Windows 8 or above, windows XP
OthersPower SupplyAC110/220V,±10%, 50/60Hz,1000VA
Package Size(W*D*H)1220*1340*890mm
Gross Weight200kg

Sample/Reagent tray

·120 sample position

·90 reagent position

·Reagent refrigerated function

Auto Chemistry Analyzer ME-480(RUBY)

Reaction tray

·90  reusable cuvettes

·Automatic blank testing for cuvettes

·Colorimetry system of the pattern of light splitting behind cuvettes

·Dismountable, easily replacement

·Reaction temperature 37℃,constant temperature function

Auto Chemistry Analyzer ME-480(RUBY)

Sample/Reagent Probe

·Automatic liquid level detecting

·Collision protection function

·Probe internal/external washing

·Probe deepth automatic adjustment

Auto Chemistry Analyzer ME-480(RUBY)

Auto cleaning system

·Automatically 6-step wash

·2 times repeat wash

·Hi-tech washing station to ensure

accurate results

Auto Chemistry Analyzer ME-480(RUBY)

Auto mixer, independently

·Automatically mix reagent and sample in cuvettes

·Ensure full reaction

·Automated wash itself

·Avoid cross-contamination

Auto Chemistry Analyzer ME-480(RUBY)

Perfect standard diagram

·Automatic show reaction curve

·QC result diagram recorder,print available

Auto Chemistry Analyzer ME-480(RUBY)

Intelligent software

·Automatic washing cuvette

when start test&finish test

·Automatic detect sample& reagent volume

·Reaction temperature detecting when startup

·Alarm: automatic alarm of no reagent,no sample,wrong run,out of linearity range etc

·Automatic re-test sample in next order if no reagent

Auto Chemistry Analyzer ME-480(RUBY)

Real-time and Dynamic display running status

·Real-time show the running status

· Real-time show the status of reagent tray,sample tray,cuvettes

·Rea-time update the reagent residual volume

Auto Chemistry Analyzer ME-480(RUBY)
