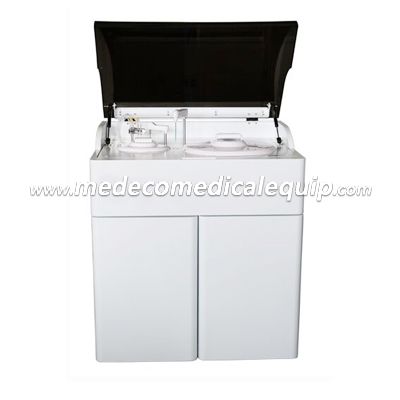

ME-240(PEARL) Auto Chemistry Analyzer
| OverallPerformance | Model | ME-240(PEARL) |
| Type | Vertical,Discrete,Fully automatic | |
| Throughput | 200T/H | |
| Analysis Method | End-point,kinetic,Two-point | |
| Certification | CE, FDA, ISO9001, ISO14001, ISO13485 | |
| Sample & Reagent Unit | Sample Positions | 40 sample positions, including calibration, quality control and emergency |
| Reagent Positions | 80 refrigerated reagent positions | |
| Sample Volume | 1ul ~30ul (0.1ul stepping) | |
| Reagent Volume | R1&R2:20ul ~300ul (1ul stepping) | |
| Sample& Reagent Probe | Automatic liquid level detecting，Collision protection function，Probe internal/external washing，Probe deepth automatic adjustment | |
| Probe cleaning | Automatic washing both interior and exterior | |
| Reagent tray cooling | Continuous 2℃~8℃ cooling within 24 hours | |
| Reaction Unit | Reaction Time | 10 minutes |
| Temperature Control | 37℃±0.1℃, with online software monitor the temperature | |
| Cuvettes | 44 reusable reaction cuvettes (optical path length 6mm) | |
| Washing | After finishtesting, washing probe wash cuvettes automatically | |
| Optical System | Light Source | Halogen-tungsten lamp |
| Wavelength | 300-700nm,8 wavelengths, Precision±1nm (4 positions are optional) | |
| Absorbance range | 0-4.00Abs | |
| Linear Range | 0.0001Abs | |
| Calibration and QC | Calibration | Linear/nonlinear,one point,multi-point(Max 8 points) |
| Quality Control | QC plot automatically depict the function condition,show the QC results | |
| Software | Intelligent software | Automatic washing cuvette when start test&finish test，Automatic detect sample& reagent volume，Reaction temperature detecting when startup |
| Alarm | Automatic alarm of no reagent,no sample,wrong run,out of linearity range etc, Automatic re-test sample in next order after no reagent | |
| Software | Windows 7,Windows 8 or above, windows XP | |
| Others | Power Supply | ~100-240V, 50-60Hz,1000VA |
| Package Size(W*D*H) | 870*720*1320mm | |
| Gross Weight | 136kg |
Sample/Reagent tray
·40 sample position
·80 reagent position
·Reagent refrigerated function
Reaction tray
44 reusable cuvettes
Automatic blank testing for cuvettes
Colorimetry system of the pattern of light splitting behind cuvettes
Dismountable, easily replacement
Reaction temperature 37℃,constant temperature function
Sample/Reagent Probe
Automatic liquid level detecting
Collision protection function
Probe internal/external washing
Probe depth automatic adjustment
Auto cleaning system
Automatically 4-step wash
3 times repeat wash
Hi-tech washing station to ensure
accurate results
Auto mixer, independently
Automatically mix reagent and sample in cuvettes
Ensure full reaction
Automated wash itself
Avoid cross-contamination
Perfect standard diagram
Automatic show reaction curve
QC result diagram recorder,print available
Intelligent software
Automatic washing cuvette
when start test&finish test
Automatic detect sample& reagent volume
Reaction temperature detecting when startup
Alarm: automatic alarm of no reagent,no sample,wrong run,out of linearity range etc
Automatic re-test sample in next order after no reagent

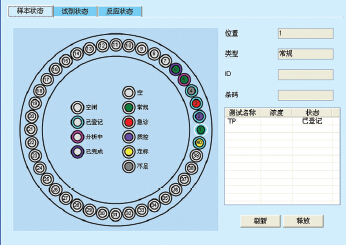

Real-time and Dynamic display running status
Real-time show the running status
Real-time show the status of reagent tray,sample tray,cuvettes
Rea-time update the reagent residual volume
