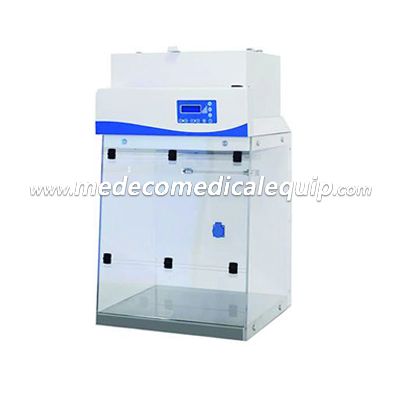

Compounding Hood MEBS-V500 & MEYKG-VII
Features：
Compounding Hood
There are two types:

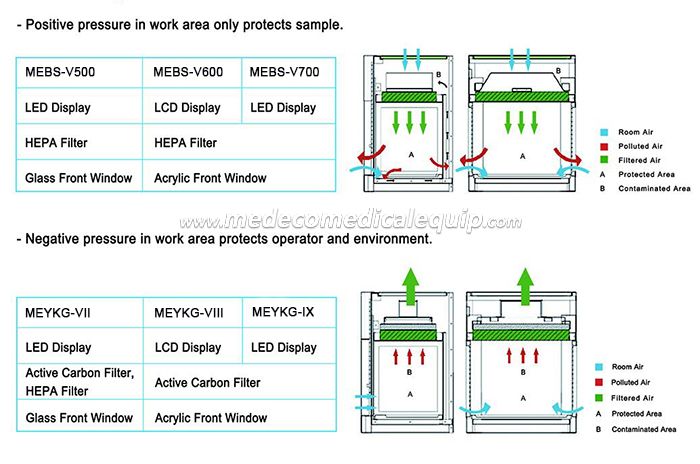

Vertical laminar flow cabinet MEBS series, positive pressure in work area only protects sample.
Class I biological safety cabinet MEYKG series, negative pressure in work area protects operator and environment.
ADVANTAGE：
1.Air speed adjustable.
2. Tabletop type,easy to carry and save space.
3. Microprocessor control system,LED Display.
4.HEPA Filter with efficiency:99.999% at 0.3 μm.
TECHNICAL PARAMETERS

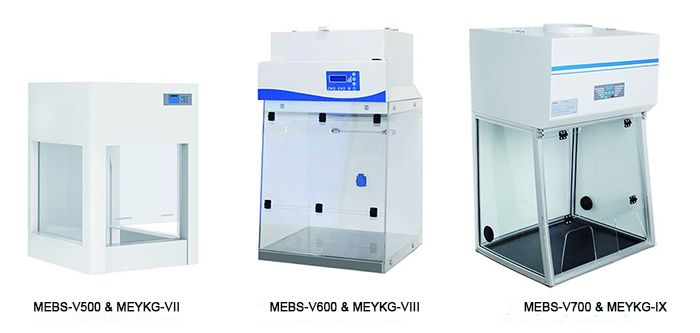

| Model | MEBS-V500 | MEYKG-VII | MEBS-V600 | MEYKG-VIII | MEBS-V700 | MEYKG-IX | |
| External Size (W*D*H) | 550*460*700mm | 600*581*1115mm | 700*620*1150mm | ||||
| Internal Size (W*D*H) | 480*340*370mm | 580*520*613mm | 640*550*700mm | ||||
| Display | LED Display | LCD Display | LED Display | ||||
| Airflow Velocity | 0.3~0.5m/s | ≥0.5m/s | 0.3~0.5m/s | 0.3~0.8m/s | 0.3~0.5m/s | 0.3~0.8m/s | |
| Material | Main Body | Cold-rolled steel with anti-bacteria power coating | |||||
| Work Table | 304 Stainless steel | Chemical resistant phenolic resin | |||||
| Pre-Filter | Polyester fiber, washable(for model BBS-V500,BBS-V600 and BBS-V700) | ||||||
| Filter | HEPA Filter | Active Carbon Filter,HEPA Filter | HEPA Filter | Active Carbon Filter | HEPA Filter | Active Carbon Filter | |
| Noise | ≤65dB | ≤60dB | ≤52dB | ≤68dB | ≤65dB | ≤68dB | |
| Front Window | Manual, 5mm toughened glass, anti UV | Manual, acrylic material | Manual, acrylic material | ||||
| Max Opening | 310mm | 590mm | 660mm | ||||
| LED Lamp | 4W*1 | 4W*1 | 4W*2 | ||||
| UV Lamp | 8W*1 | 8W*1 | 15W*1 | ||||
| Emission of 253.7 nanometers | |||||||
| Consumption | 100W | 150W | 300W | ||||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | ||||||
| Standard Accessory | HEPA Filter,LED Lamp,UV Lamp*2. | Active Carbon Filter,HEPA Filter,LED Lamp,UV Lamp*2. | HEPA Filter,LED Lamp,UV Lamp*2,Waterproof Socket. | Active Carbon Filter,LED Lamp,UV Lamp*2. | HEPA Filter,LED lamp*2,Pipe Strap. | Active Carbon Filter,LED lamp*2,4 meters PVC exhaust duct,Pipe Strap. | |
| Optional Accessory | Electric height adjustable base stand | UV Lamp*2 | |||||
| Gross Weight | 57kg | 90kg | 45kg60kg(with base stand) | ||||
| Package Size (W*D*H) | 700*610*830mm | 760*740*1280mm | 840*760*1370mm840*960*1370mm(with base stand) | ||||
