MEBS-V1300&MEBS-V1800 Vertical Laminar Flow Cabinet

Share
documents & resoures

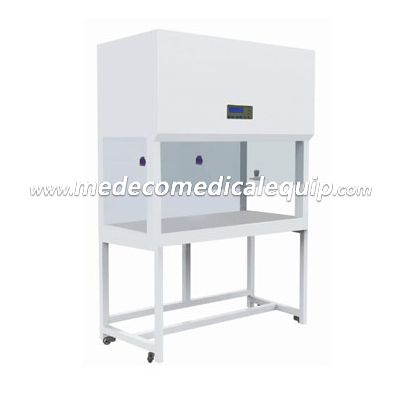

MEBS-V1300&MEBS-V1800 Vertical Laminar Flow Cabinet


Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.

Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.

MEBS-V1300                              MEBS-V1300

LCD Display                                                                            Waterproof socket

Airflow velocity, UV timer, UV work time,                             2 waterproof sockets are located in the side

system work time, real time                                                 panel, for optimum convenience of using

                                                                                             small devices inside the cabinet

MEBS-V1300                                     MEBS-V1300

UV lamp                                                                                Gas Tap

Emission of 253.7 nanometers for most

efficient decontamination

MEBS-V1300


TECHNICAL PARAMETERS

ModelMEBS-V1300MEBS-V1800
External Size(W*D*H)1300*750*2040mm1800*750*2040mm
Internal Size(W*D*H)1200*645*610mm1700*645*610mm
Work Surface Height750mm
DisplayLCD Display
Airflow VelocityAverage of 0.3~0.5m/s
MaterialMain Body: Cold-rolled steel with anti-bacteria powder coating
Work Table:304 stainless steel
Side and Front Windows:5mm toughened glass anti-UV
Pre-filterPolyester fiber, washable
HEPA Filter99.999% efficiency at 0.3um
Noise<60dB
Front WindowMotorized
Max Opening430mm
Fluorescent Lamp12W*116W*1
UV Lamp30W*140W*1
Emission of 253.7 nanometers
Consumption400W450W
Waterproof socketTwo, total load≤500W
CasterUniversal caster with leveling feet
Power SupplyAC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard AccessoryLED lamp, UV lamp*2,Base stand, Gas Tap, Waterproof socket*2
Gross Weight228kg306kg
Package Size(W*D*H)1460*1070*1650mm1960*970*1600mm
