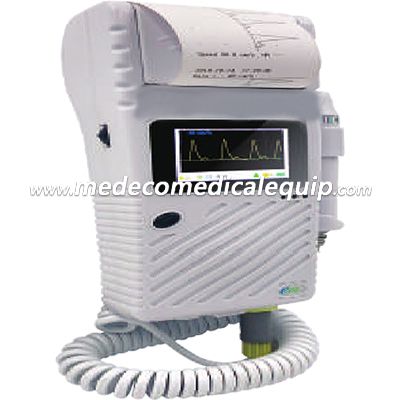

Ultrasonic Vascular Doppler Detector ME-520P

Ultrasonic Vascular Doppler Detector ME-520P

Features:

It is mainly used for the detection of arterial blood flow in human or animal. It is suitable for urology, andrology and hand surgery. Department of Orthopaedics, Traumatic Surgery, Vascular Surgery, Burn, Plastic Surgery, Cardiothoracic Surgery, etc., with superelevation Sensitive, small size and easy to use.

Product parameters:

Band: The host: 200 ± 80 ~ 5000 ± 1000Hz

Probe: 350 ± 80 ~ 2500 ± 500Hz

External Output: Speaker

Transmit waveform : sine

Ultrasonic frequency: 8.0MHz ± 10%

Average sound intensity ultrasonic power: ≤ 50mW / cm2

Speed range: not narrower than 40cm / s - 200cm / s

velocity error: ≤ 20% (relative error)

System gain:> 100dB

Audio bandwidth: 0.2 KHz ~ 7.0 KHz

Display: 320 x 240 dot TFT

Power Supply: AC-DC work. (AC 220V/110V adapter; DC 9V /5000mA power,built-in lithium battery)

Total power consumption: <50W;

Continuous working time: ≥8 hours
