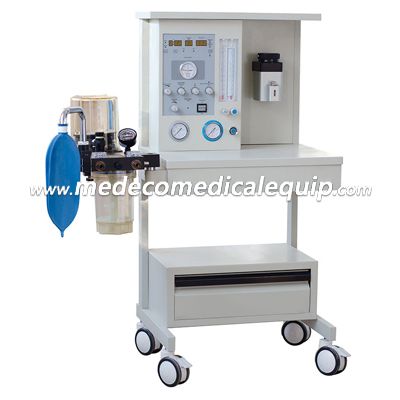

Anesthesia machine ME01-I with one vaporizer

Share
documents & resoures

Anesthesia Machine ME01-I with one vaporizer


Specifications:

Pneumatically drivenelectronicallycontrolledsystem

Built-in ventilator, LED displayscreen

With 1 patient circuit foradult(Option:patient circuit for children).

2-tube flowmeters, O2 & N2O; 0.1 L/Min~10L/Min;

Onevaporizer,Enflurane/Isoflurane/Sevoflurane;(Option: Halothane)

Oxygen Flush: 25~75 L/Min;

Respiration Mode:  IPPV,SIPPV,Manu

Tidal Volume: 50~1500 mL;

I:E: 1:1.5; 1:2.0; 1:2.5; 1:3

RespirationFrequency:  4~40 bpm

Ptr: -10~10 hPa;

CO2 absorber capacity: 1.5 kg

Alarm parameter: upper/lowerlimitofventilation volume, upper /lower limit of airway pressure, tidalvolumeexceedlimitation, no tidal volume output, apnea, AC power malfunction,batterylowpower


Loop part:

Integrateddesign, integrated breathing circuits


Evaporator:

High-precision single evaporatorconfiguration, enflurane or isoflurane or Sevflurane or Haloflurane

Concentration adjustment range: 0.5 ~ 5%VOL

Evaporator flow, pressure, andautomatictemperature compensation function

Self-locking feature


Configuration:

Vaporizer: one vaporizer, Enflurane/Isoflurane/Sevoflurane(Option: Halothane)

Anesthesia gas concentration range:0.5~5%

Soda lime absorption system: resistance to high temperature of 176 degrees Celsius.
