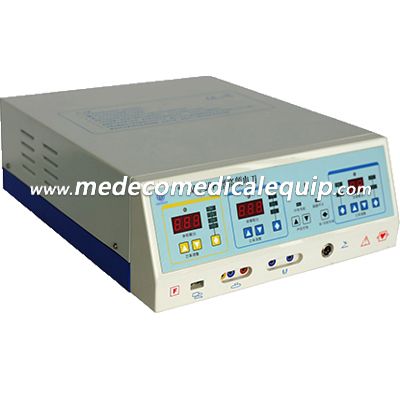

High Frequency Electrosurgical Unit Electrosurgical/Hf Surgical/Hf Electric ME-50F

High Frequency Electrosurgical Unit  Electrosurgical/Hf Surgical/Hf Electric ME-50F

Specifications:

1. electronic surgical equipment
2. 7 monopolar modes & 2 bipolar modes
3. can perform endoscopic surgery
4. CE ISO

Electronic surgical equipment

1. Classification: Class I Type CF

2. Main Frequency: 625kHz±5% Modulate Frequency: 25kHz±5%

3. Working Mode: Intermittent and continuous working, 10s/30s

4. Output power and peak voltage:

5. Automatic Storage: The working mode and output power set during operation can be stored in the unit for 100 years.

6. High Frequency Leakage Current

The neutral electrode is isolated from the earth during the high frequency operation, the High Frequency Leakage Current <150mA.

7. Output Channels: Monopolar: 1 channel, Bipolar: 1 channel.

8. Output Setting and Indicating: The output is set by key pressing in different area according to different working mode, it is displayed digitally.

9. Output Indicating

Visual Indicator: Monopolar Cutting - Yellow / Coag - Blue / Bipo - Blue Audio Indicator: When the power is output, there is an audio indicator, the volume can be adjusted.

10. Error Indicating

Visual Indicator: The red indicator indicating the error and danger detected by self-detecting or monitoring (ALARM);

Audio Indicator: When alarming, there is an pulse audio indicating, this volume cannot be adjusted.

11. Output Control

monopolar: Hand Control, Foot Control;

Bipolar: Foot Control, Automatic Control.

12. Main Supply: AC220V±10% 50Hz±2%

13. Dimension: 380mm×450mm×170mm

14. Net Weight: 7.5 kg

15. Operation Condition:

Environment Temperature: +5°C~+40°C

Relative Humidity: ≤85%

16. Transport and Storage Condition:

Environment Temperature: -40°C~+50°C

Relative Humidity: ≤90%

This intelligent product is designed for big-middle hospital.

The system has NE CONTINUITY MONITOR, intended for connection to an NE (single plates),providing an alarm in the event of electrical discontinuity in the NE cable or its connections. as well as Neutral electrode contact quality monitor (CQM), intended for connection to a MONITORING NE (split plates) providing an alarm in the event that NE contact with the PATIENT becomes insufficient.

This system can be used together with the endoscope, to perform endoscopic surgery.

It is intended for general surgery, orthopedic surgery, chest surgery, cardiovascular surgery, gynecology, urology, tumor, gastroenterology, neurology and so on.
