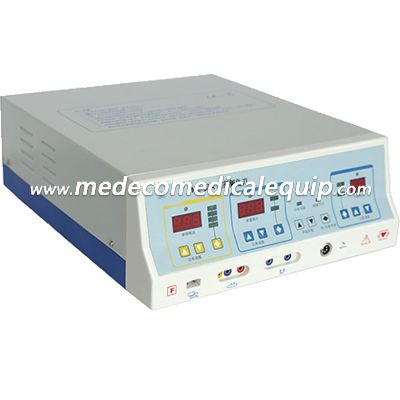

Surgical Instrument Rife High Frequency Welding Machine ME-50A

Surgical Instrument Rife High Frequency Welding Machine ME-50A

Specifications:

1. Classification: Class I Type CF

2. Main Frequency: 625kHz±5% Modulate Frequency: 25kHz±5%

3. Working Mode: Intermittent and continuous working, 10s/30s

4. Output power and peak voltage:

5. Automatic Storage: The working mode and output power set during operation can be stored in the unit for 100 years.

6. High Frequency Leakage Current

The neutral electrode is isolated from the earth during the high frequency operation, the High Frequency Leakage Current <150mA.

7. Output Channels: Monopolar: 1 channel, Bipolar: 1 channel.

8. Output Setting and Indicating: The output is set by key pressing in different area according to different working mode, it is displayed digitally.

9. Output Indicating

Visual Indicator: Monopolar Cutting - Yellow / Coag - Blue / Bipo - Blue Audio Indicator: When the power is output, there is an audio indicator, the volume can be adjusted.

10. Error Indicating

Visual Indicator: The red indicator indicating the error and danger detected by self-detecting or monitoring (ALARM);

Audio Indicator: When alarming, there is an pulse audio indicating, this volume cannot be adjusted.

11. Output Control

Monopolar: Hand Control, Foot Control; Bipolar: Foot Control, Automatic Control.

12. Main Supply: AC220V±10% 50Hz±2%

13. Dimension: 410mm×320mm×155mm

14. Net Weight: 5 kg

15. Operation Condition:

Environment Temperature: +5°C~+40°C

Relative Humidity: ≤85%

16. Transport and Storage Condition:

Environment Temperature: -40°C~+50°C

Relative Humidity: ≤90%
