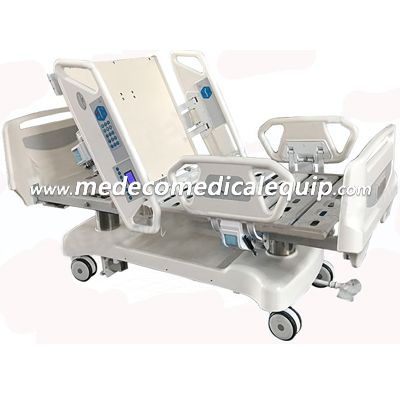

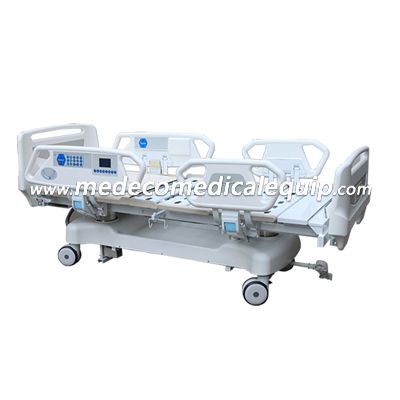

Seven Function Adjustable Electric Hospital ICU Bed ME09

Electric Bed


Seven function with x-ray function ICU transfer tilting hospital bed.

* Linak motor and control box.

* Supplied with back-up battery switch.

* One step detachable head and foot board.

* CPR handle, dual side, with clear red mark.

*Manual CPR—Instant manually release of back part

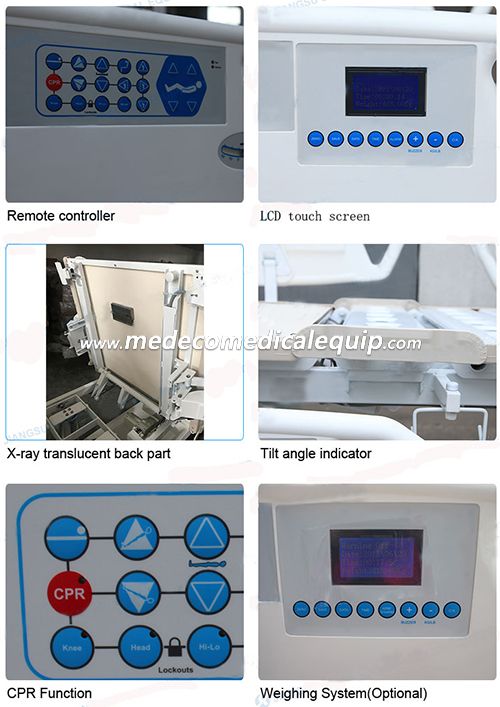

* Remote controller built in railing, both side: inside for patient easy control

   Outside for nurse control.

* Title angle indicator in railing: four for guardrail, two for bed frame.

* One button chair position.

* Bed length can be extended when needed.

*Central brake system with 6" wheels.

* Integrated base with all cable and motor inside, the bed can be washed.

*X-ray translucent back part, C-arm function available.

*Weighing System: Its in-bed scale system increase efficiency by taking accurate

  weight readings with the patient in any position. Weight readings system, LCD display on side railing.

*Alarm away from the bed.


Parameters:

ParametersSize
Overall Length(extend)2230mm
Overall Length(not extended)2130mm
Overall Width1050mm
Patient Platform Length(extended)2020mm
Patient Platform Length(not extended)1920mm
Patient Platform Width900mm
Maximum Safe Load250kg
Caster Diameter150mm
Back-rest Lifting0°- 75°
Knee-rest Lifting0°- 45°
Trendelenburg/Reversed trendelenburg0°- 10°
Lateral tilt0°- 30°
Height Adjustment570-750mm
