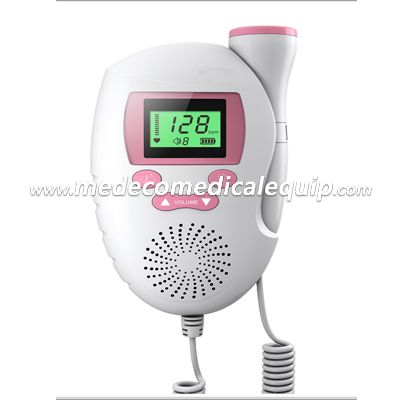

Fetal Doppler ME-703-L

Share
documents & resoures

Fetal Doppler ME-703-L


Optional: Bicolor LCD screen or color TFT screen;
Calculating FHR with the same DSP techniques as used in fetal heart monitor, ensure the FHR accuracy and reliability;
High sensitive probe, low ultrasound power, more safety to the fetus;Friendly interface, easy to operate;Built-in speaker and audio output;Optional Bluetooth transmission;Auto power-off after 1 minute of inactivity.

Product Specifications

SpecificationsClassificationAnti-electric shock type: Internally powered equipment
Anti-electric
 shock degree
Type B equipment
Liquid proof
 degree
Waterproof grade of the probe: IPX2, waterproof grade
of the unit: IPX0
Degree of safety
 in presence of
 flammable gases
Not suitable for use in presence of flammable gases
Working systemContinuous running
EMCGroup I Class B
Size150 (Length) ×96 (Width) ×38 (Height) mm
Weight170g±20g (excluding batteries)
Working EnvironmentTemperature+5℃~+40℃
Humidity15%~85%
Atmospheric
pressure
86kPa ~106kPa
Transport and
 Storage
Environment
Temperature-20℃~+55℃
Humidity10%~93%
Atmospheric
pressure
86kPa~106kPa
FHR
Performance
Integrative
sensitivity
≥90dB
FHR measuring
range
50~210bpm(bpm:beat/minute)
Accuracy±2bpm
Speaker power0.5W
Battery typeTwo pieces of AA batteries
Ultrasound
Probe
Degree of liquid
 protection
provided by
sealed equipment
IPX2
Working frequency2.5MHz±15%
Working modeContinuous wave doppler
Spatial-peak
temporal-peak
intensity
< 21.7 kPa
Ultrasonic output
intensity
< 10mW
Effective
radiating area
157m㎡±15%
