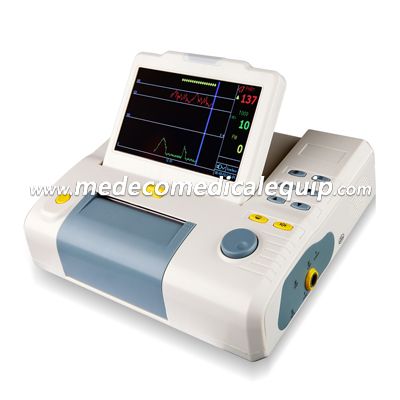

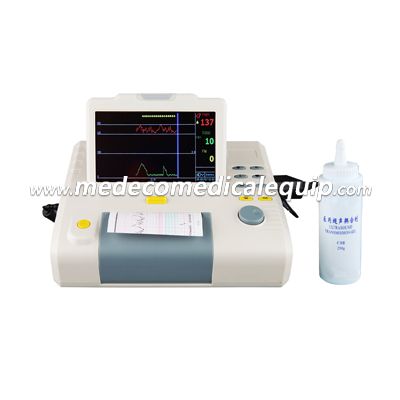

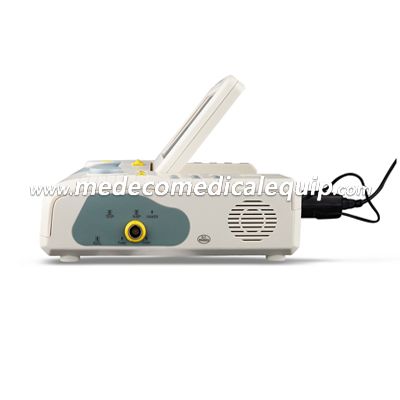

Fetal Monitor ME9000E

Fetal Monitor ME9000E

Compact and lightweight design

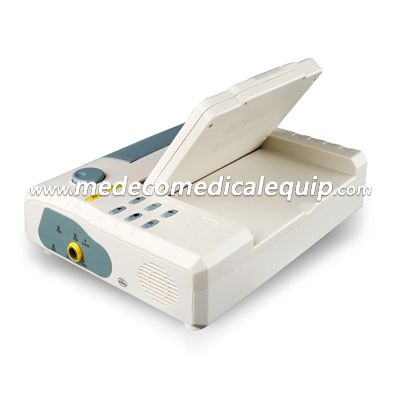

7" color TFT screen, folding 90 degrees

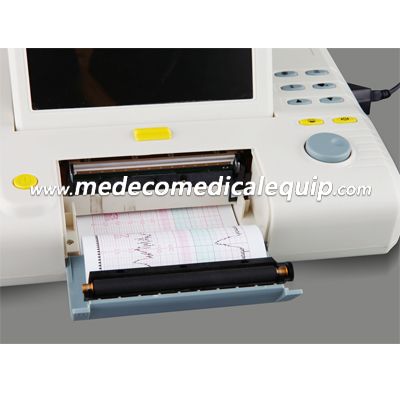

Built-in high dot matrix thermal printer with long life

A standard patient event marker and a clinical event marking button to mark clinical events separately.

Auto fetal movement are available.

Multi-crystals, wide beam forming, high sensitivity ultrasound transducer, low ultrasound power

AC or Li-ion battery

More than 12 hours data storage, which can be recalled and reprinted.

Technical Specifications

Fetal Heart Rate             Multi-crystal,pulsed doppler,high sensitive

Transducer Strengh           <5mW/cm2

Working frequency             1.0MHz

Signal processing             special DSP system and mode recognization

Measurement range             50~210 bpm

Alarm Range:                  High:   160    170    180    190 bpm

                                        Low :   90    100    110    120 bpm

The largest audio output power     1.5W

TOCO

Measurement range              0~100units

Battery working time              2 hours(no printer working)

Speaker                                 1W

Power Supply                         AC 220V±20%，50Hz  or 8.4V Li-battery

Power consumption              <20W

Working Environment            Temperature:    10~40 ℃,        RH: 10~80%

Transducer Acoustic Output     Under the requirements laid down in IEC 1157, 1992, the peak negative acoustic pressure does not exceed 1Mpa. The output beam intensity does not exceed 20mW/cm2 and the spatial-peak temporal-ave rage intensity does not exceed 100mW/cm2

Dimension                     295W×240D×73H×mm

Net weight                    1.75kg

Standard: FHR, TOCO, FM

Optional: Twins,FAS(Fetal acoustic simulator)
