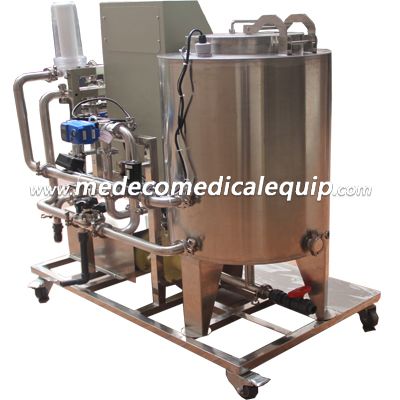

Automatic Powder Mixer

Automatic Powder Mixer

Normal working condition：

1)Environment temp 5℃~40℃.

2)Relative humidity≤80%.

3)Atmospheric pressure 70kPa~106kPa，avoid direct sunlight，keep good air mobility.

4)Power voltage：Single-phase 220±22V .

5)Frequency range:50Hz±10Hz.

6)Water requirement： Temperature: 10℃～35℃.

Can meet the standard of haemodialysis treatment.

7)Feed water pressure：0.10 MPa ～ 0.50 MPa.

8）Drainage：Outlet diameter≥5cm，waterproof and floor drain .

Structure：

Device major consists 3 parts：Stirring system, Control system and Pipelines.

Stirring system：Including mixing tank, pump, filter, electric valve, solenoid valve, diaphragm valve and pipelines.

Control system：Including operation control equipment and electronic parts.

Pipeline：Including PVC pipeline, flexible connector, ball valve, elbow, three ways connector, straight connector etc.
