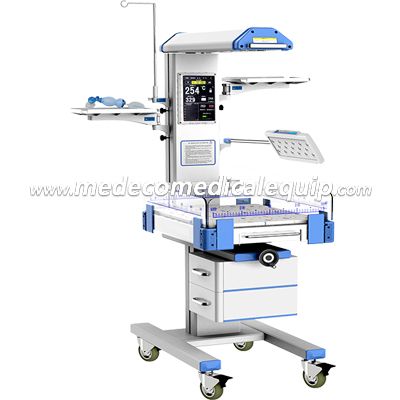

Infant radiant warmer with LCD touch screen Phototherapy Unit Pulse Oximetry MEBN-100

Infant radiant warmer with LCD touch screen  Phototherapy Unit  Pulse Oximetry MEBN-100

Function features

Microprocessor based servo controlled temperature system

The microprocessor-controlled unit allows for three modes: pre-warm, manual and automatic

APGAR timer to record therapy time

Audible and visual  Alarm functions :

Power failure, temperature deviation, temperature sensor failure, skin temperature failure, over temperature

LED observation light adjustable,brightness adjustable

Heater head can be adjusted  ±90°horizontally

Convenient X-ray cassette board under infant bed

Tilt angle of infant bed is adjustable

Four Transparent protector folded with 2 infusion seals

With RS-232 connector,2 trays and 2 drawers

Skin temp T1,T2; Temp value and trend on 8″LCD Touch screen

Pulse oximetry, APGAR timer and other parameters display on 8″LCD  screen

BL -60D Phototherapy unit,Sillicone Ambu-bag set, Laryngoscope set

Technical data

Power supply                              AC110/220V   60/50Hz

Power input                               1000VA

                  Environment temperature                    18℃～30℃

Operating          Environment relative humidity                 30％～75％

conditions          Atmospheric Pressure                        700～1060hpa

                  Environment air velocity of flow                 ＜0.3m/s

Skin Temperature control range                                   32℃～38℃

Skin temperature control accuracy                                 ≤0.5℃

Skin temperature sensor accuracy                                 ±0.3℃

Mattress temperature uniformity                                  ＜2℃

Infant Bed tilt angle                                              ±10°

LED observation light function                                      3W

Warm-up time(from 25℃)                                        ＜30min

Heater head horizontal                                            ±90°

Distance from heater to mattress                                   80cm

Mattress size                                                   67cmX54cm

APGAR Timer range                               0～99h59min,singal per min at first 1h

Heating power                                       0-100％in5％step

Phototherapy Irradiance                                          20-70μw/c㎡/nm

Transport and storage

Package

Each unit is packed one plywood case

Size:118*90*87cm

N.W.:75Kg        G.W.:100Kg

Transport and storage

Environment temperature            -40℃～+55℃

Environment relative humidity    ≤95％

Atmospheric Pressure                 500～1060hpa

Standard configuration

Main body (including the Radiant source, Control

system,Infant bed, Bracket), X-ray cassette ,

Observe light ,I.V.pole, Skin temperature sensor,

Tray, Mattress, Transparent protector, Castors ,

Drawers

Reusable temperature sensor - 40 pcs. (20 skin and 20 peripheral)
