LED OPERATING LAMP ME LED 700/700


FEATURE



MEDECO ME LED OPERATING LAMP

LED operating lamp color temperature adjustable

Adjust range :3000-5000K

LED operating light Brighter than ever

Max Illumination reaces 160k Lux or more

LED surgical light show you the ture color of nature

Ra Reach 95

LED surgical operating lamp deeper focusing range

Depth of light more than 700mm

LED shadowless surgical theatre light bigger light spot

Adjust range :120-300mm


Germany imported Osram LED medical light source is adopted

ME LED Touch pad control system is developed for adjustment control of power switch, brightness switch, illumination level, color temperature, color rendering index, to meet medical personnel requirement of variant operation.

Cold infrared-free light

In comparison to conventional halogen and gas discharge lamps, the “cold” ME LED light allowing for fatigue-free operating and prevents tissue from drying out in the operation field at the head area of the surgeon.

Shadow-free Illumination

The relation between light body and light field diameter guarantees an optimum illumination of the OT field in terms of area and depth.

High Luminance with optimum color rendering

Designed to provide a light output with a color rendering index and color temperature which is very close to natural daylight.This helps the surgeon to distinguish between pathological and healthy tissue.

Optimum design for clean air ceilings (Laminar Air Flow)

The perfect design reduce the airflow surface beneath the ventilated ceiling, Flow- optimized light head and reduced surface temperature minimise turbulence in laminar air flow.

Long-lasting light sources, environmentally friendly

With a life cycle of at least 50,000 operational hours, an LED provides illumination many times longer than conventional lighting.In addition,each LED can be replaced individually and on site.

The Germany ondal and Chinese arm system option

As a flexible lighting solution, ME LED light can be individually combined with different support arm solutions,enabling it to be used as needed in different operating theatres.



STANDARD MODEL CONFIGURATIONS:

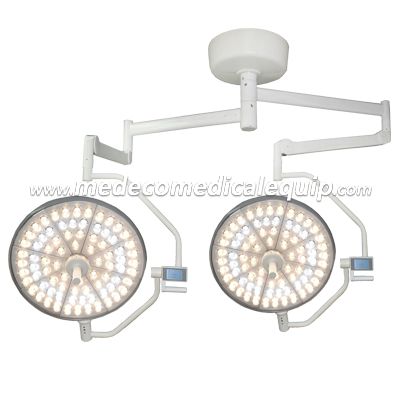

ME LED700/700(700mm+700mm Lamp Head)

ME LED700/500(700mm+550mm Lamp Head)

ME LED500/500(700mm+550mm Lamp Head)

ME LED700 (700mm Lamp Head)

ME LED500 (550mm Lamp Head)



TECHNICAL SPECIFICATIONS FOR LED LIGHT

Technical specifications for lights  ME LED700ME LED500
Illumination(Lux)40,000~160,000 (8 step)40,000~120,000 (8 step)
Focusable light-field size (mm)150~300150~300
Colour temperature3500 4000 4500 50003500 4000 4500 5000
Light Depth L1+L2(mm)>1000>1000
Colour Index Ra>95>95
Power Supply110~240V  50/60Hz110~240V  50/60Hz
Effective bulb service life >50,000h>50,000h
Diameter of lamp housing 650mm550mm
Power (W)12084
Installation height (Ceiling type)280-320 cm280-320 cm



MEDECO  HD camera system Parameter
Image Sensor1/2.8 CMOS
HD Digital Pixel(Resolution)Imported Sony HD>2 million pixels(1920x1080)
Aspect Ratio16:9
Lens10x Optical zoom&12x Digital zoom F=1.8-2.5(f=6.3~63mm)
Minimum LuminanceColour 2.0 Lux,Black white 0.1 Lux
White BalanceIndoor/fluorescent light/halogen light/LED light model, signal can be adjust
Minimum Object Distance800 mm
Signal/Noise RatioØ 50 dB
Output connection 1.HD SDI 2.HDMI
Medical MonitorFull HD medical level, 22",SDI Interface
