LED OPERATING LIGHT II LED 700/700 (Square Arm)


FEATURE



MEDECO II LED OPERATING LAMP

LED operating lamp color temperature adjustable

Adjust range :3000-5000K

LED operating light Brighter than ever

Max Illumination reaces 160k Lux or more

LED surgical light show you the ture color of nature

Ra Reach 95

LED surgical operating lamp deeper focusing range

Depth of light more than 700mm

LED shadowless surgical theatre light bigger light spot

Adjust range :120-300mm



Germany imported Osram LED medical light source is adopted

II LED Touch pad control system is developed for adjustment control of power switch, brightness switch, illumination level, color temperature, color rendering index, to meet medical personnel requirement of variant operation.

Cold infrared-free light

In comparison to conventional halogen and gas discharge lamps, the “cold” II LED light allowing for fatigue-free operating and prevents tissue from drying out in the operation field at the head area of the surgeon.

Shadow-free Illumination

The relation between light body and light field diameter guarantees an optimum illumination of the OT field in terms of area and depth.

High Luminance with optimum color rendering

Designed to provide a light output with a color rendering index and color temperature which is very close to natural daylight.This helps the surgeon to distinguish between pathological and healthy tissue.

Optimum design for clean air ceilings (Laminar Air Flow)

The perfect design reduce the airflow surface beneath the ventilated ceiling, Flow- optimized light head and reduced surface temperature minimise turbulence in laminar air flow.

Long-lasting light sources, environmentally friendly

With a life cycle of at least 50,000 operational hours, an LED provides illumination many times longer than conventional lighting.In addition,each LED can be replaced individually and on site.

The Germany ondal and Chinese arm system option

As a flexible lighting solution, II LED light can be individually combined with different support arm solutions,enabling it to be used as needed in different operating theatres.



STANDARD MODEL CONFIGURATIONS:

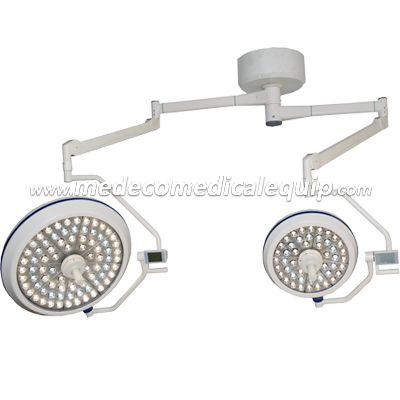

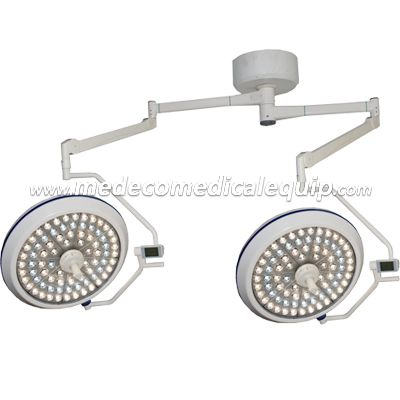

II LED700/700(700mm+700mm Lamp Head)

II LED700/500(700mm+550mm Lamp Head)

II LED500/500(700mm+550mm Lamp Head)

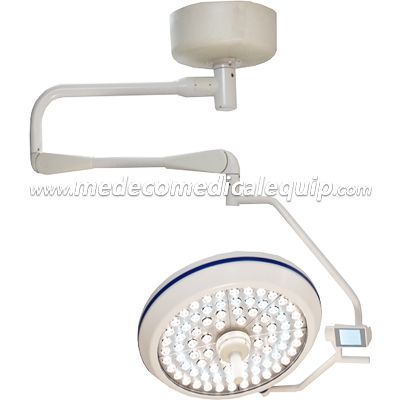

II LED700 (700mm Lamp Head)

II LED500 (550mm Lamp Head)



TECHNICAL SPECIFICATIONS FOR LED LIGHT

Technical specifications for lightsII   LED700II   LED500
Central   illuminance at 1m working distance40,000~18,0000   lux40,000~160,000   lux
Focusable   light-field size at  1 m distance120~300mm120~300mm
Colour   temperature3500~5000K3500~5000K
Depth of   Focus>700mm>700mm
Colour   Index Ra9595
Power Supply110~240V    50/60Hz110~240V    50/60Hz
Effective   bulb service life>50,000h>50,000h
Diameter   of lamp housing700mm550mm
Power   consumption of light heads(W)6048
Installation   height (Ceiling type)280-320   cm280-320   cm
