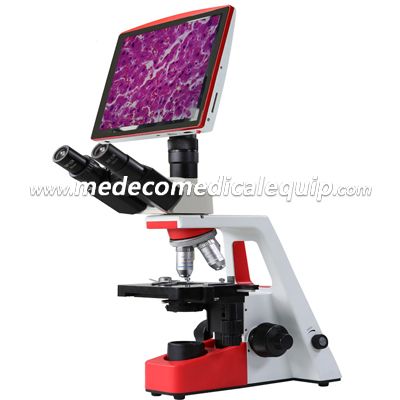

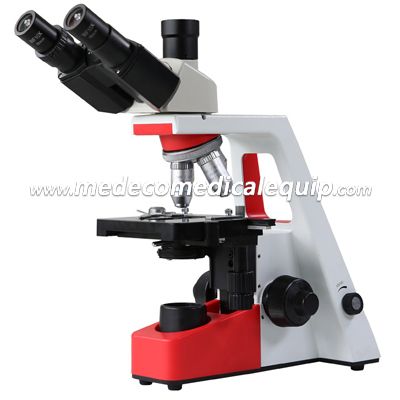

ME236-A LCD Screen Digital Trinocular Biological 1600X Microscope

Inquire Now None

documents & resoures

ME236-A LCD Screen Digital Trinocular Biological 1600X Microscope

Features:

Drawtube:Trinocular

Magnification:40X-1600X

Viewing head:Trinocular Head,30° Inclined

Eyepiece:WF10X,WF16X

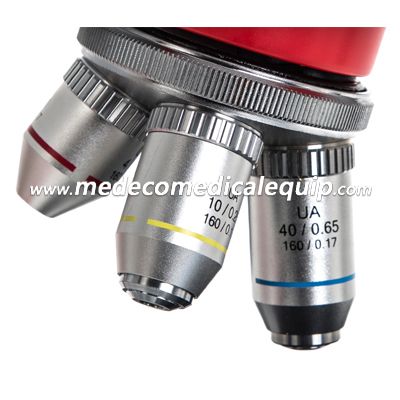

Objective:4X/10X/40X/100X

Nosepiece:4 Holes

Illumination:LED Illumination

Focusing:Coaxial Coarse and Fine Focusing

Condenser:Abbe NA=1.25

LCD Screen:9inch/10inch LCD Screen

Part Name	Specification	ME236-A	ME226-A
		40-1600X monocular quadruble abbe double ring LED 1W	40-1600X binocular quadruble 195 abbe double ring LED 1W
Viewing head	Monocular,45° inclined,360° rotatable
	Monocular TV,45° inclined,360° rotatable
	Compensation binocular head,30° inclined, interpupillary distance 48-75mm.		√
	Compensation trinocular head,30° inclined, interpupillary distance 48-75mm.	√
Eyepiece	WF10X/18mm	√	√
Eyepiece	WF16X/15mm	√	√
Objective 195 Achromatic	4X,10X,40X(S),100X(SO)	√	√
Nosepieces	Quadruble	√	√
Focusing system	Coaxial coarse&fine focusing knob,coarse focusing range 22mm,fine focusing graduation 0.002mm	√	√
Working Stage	Double layer mechanical stage,size 120115mm,7640mm,with Abbe Condenser	√	√
Condenser	Abbe condenser N.A.=1.25,with iris diaphragm,lifting rings.	√	√
Illumination	Critical illumination	√	√
Lamp	Reflector(As an attachment support)	√	√
Lamp	LED 1W,brightness adjustable,rechargable	√	√
Dimming	Digital circui,stepless adjustment light,no screen flashing	√	√
Power	LED switch power,input AC 90V-240V.wide voltage. putout:DC 5V/2A	√	√
Packing	Foam+carton	√	√
Other	1XC mount	√
