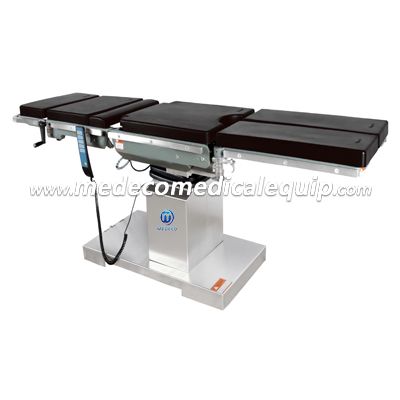

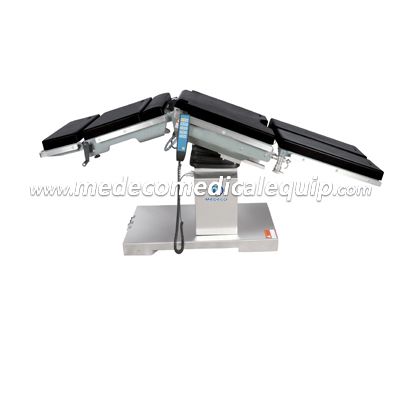

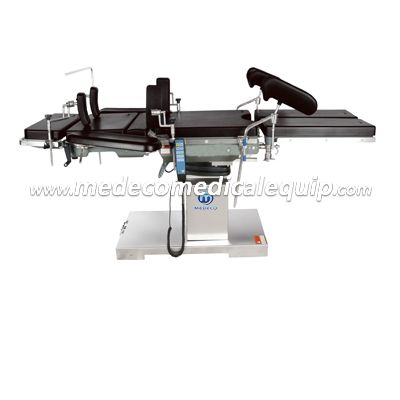

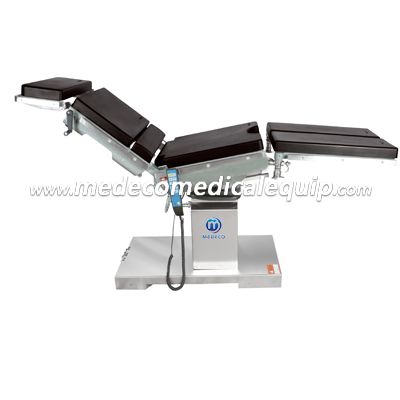

Electric hydraulic operating table ME-608S-01

Electric hydraulic operating table ME-608S-01

Parameter:

Table board frame is casing by one-time forming of  antiwear aluminum alloy, the base and lifting column is made of 307 stainless steel, PUR mattress, imported hydraulic system.

Tabletop Length: 2000 mm

Tabletop Width: 500 mm

Tabletop Width（with side rails）: 560 mm

Height Adustment(without matress): 700 mm-1000 mm

Trendelenburg/Reverse Trendelenburg: 30°

Left/Right Tilt: 20°

Manual Adustment of Head Plate(up/down): 50°/90°

Back Plate(up/down): 75°/40°

Foot Plate(up/down): 30°/90°

Foot Plate(Horizontal): 90°

Longitudinal Slide of tabletop in both direction: 500 mm

(300mm to head end and 200mm to foot end)

Standard Accessories Configuration:

Polyurethane Mattress    1  set

Manual Controller        1  piece

Lateral Support          2 pieces

Shoulder Support       2 pieces

Arm Plate       2 pieces

Leg holder      2 pieces

Anesthetic Screen Frame      1   piece

Joint Adapter      2 pieces

Fixer(A-type round)      3 pieces

Power Supply(European standard or American Standard )    220V  50Hz
