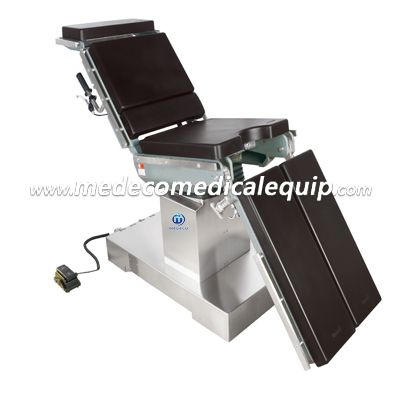

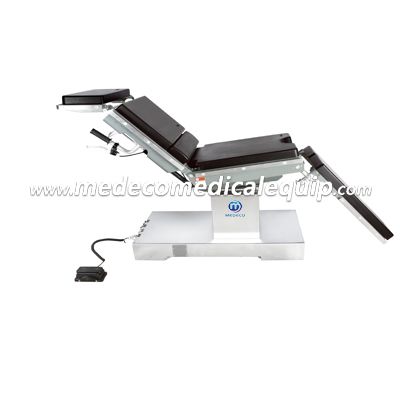

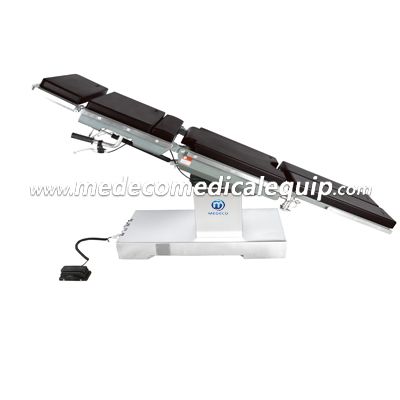

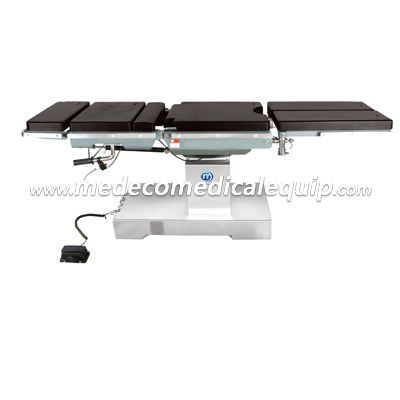

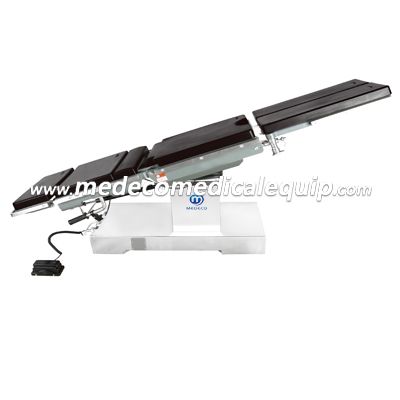

Lifting operated by electric,others by control lever ME-608-02

Lifting operated by electric,others by control lever ME-608-02

Parameter:

Table board frame is casing by one-time forming of  antiwear aluminum alloy, the base and lifting column is made of 304 stainless steel, PUR mattress, imported hydraulic system.

Tabletop Length: ..............................................................................2000 mm

Tabletop Width: ................................................................................500 mm

Tabletop Width（with side rails）: ....................................................560 mm

Height Adustment(without matress):................................................. 700 mm-1000 mm

Trendelenburg/Reverse Trendelenburg: ..........................................30°

Left/Right Tilt: ...................................................................................20°

Manual Adustment of Head Plate(up/down):.................................... 50°/90°

Back Plate(up/down): .......................................................................75°/40°

Foot Plate(up/down): .......................................................................30°/90°

Foot Plate(Horizontal):..................................................................... 90°

Standard Accessories Configuration:

Polyurethane Mattress   .................................................................1  set

Manual Controller      .....................................................................1  piece

Lateral Support     .......................................................................  2 pieces

Shoulder Support       ....................................................................2 pieces

Arm Plate      .................................................................................2 pieces

Leg holder    ................................................................................ 2 pieces

Anesthetic Screen Frame     ....................................................... 1 piece

Joint Adapter ............................................................................... 2 pieces

Fixer(A-type round)   ....................................................................3 pieces

Power Supply(European standard or American Standard )    220V  50Hz
