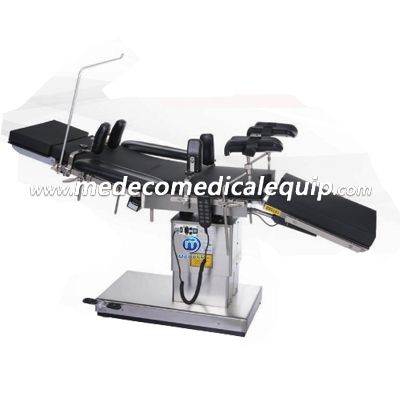

Medical Equipment Electric Operating Table MEDS-2000A

Medical Equipment Electric Operating Table MEDS-2000A

Parameter:

Electrical operating table MEDS-2000A is used in all the operations like head, neck, chest, abdomen perineum, limbs and other surgeries，obstetrics and gynecology, urology, ENT, neurosurgery and so on. Adjustable height, reversed trendelenburg and trendelenburg, lateral tilt, folding movement of back section and leg section, up-and-down of kidney section are controlled by electric circuit. Mattress is made of senior PY foam material.

Main Usage:

Electric operating table can be operated for clinical use.

Structure :Operating table consists of two parts: mechanical and electro-hydraulic control system. Depending on manual operation, the product can meet the requirement of posture in clinical operation.

Specifications:

Dimension of table top：

Overall Length………………………………………………………2000mm

Width…………………………………………………………………500mm

Dimension of section：

Head Section……………………………………………………….250×500mm

Back Section……………………………………………………….465×500mm

Waist Section………………………………………………………75×500mm

Seat section………………………………………………………..550×500mm

Leg Section………………………………………………………...600×240mm

Table top of from floor

Min Height………………………………………………………….620mm

Max Height…………………………………………………………820mm

Adujst………………………………………………………………200mm

Range of movements：

Reversed Trendelenburg………………………………………..≥20°

Trendelenburg…………………………………………………….≥15°

Lateral Til…………………………………………………………..≥15°

Range of movements：

Head Section Raised  from the horizontal……………………..≥45°

Head Section lowered from the horizonta……………………...≥90°

Back Section Raised from the horizontal……………………….≥45°

Back Section Raised from the horizontal………………………..≥5°

Leg Section Lowered from the horizontal………………………..≥90°

Kidney Bridge Elevated…………………………………………….≥80mm

Lifting speed…………………………………………………….......4～16mm/s

safe working load…………………………………………………...135kg

Device safety sort:       I     B

Ingress Protection：    IPX4

Power：                     （AC）220V，50Hz

Battery capacity:          ≥ 2.4AH

Accessories:
