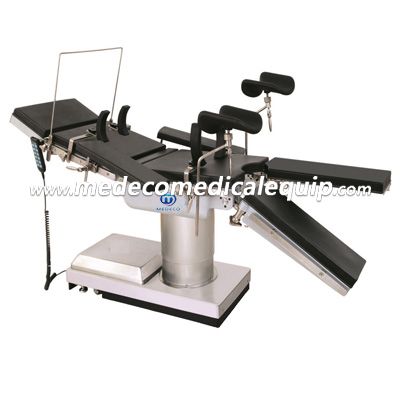

Medical Equipment Electric Operating Table MEDS-99E-C

Medical Equipment Electric Operating Table MEDS-99E-C

Parameter:

This Electric Operating Table MEDS-99C is developed independently by our company with innovative and advanced technology. The table is a comprehensive one with high-quality and multi-purposes, which takes the leading position in the domestic market.

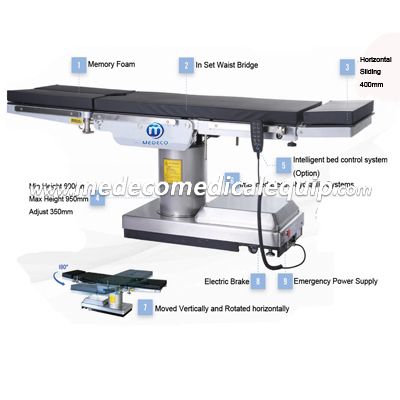

The table can be used in almost all kinds of operations by means of special design. The table top can be moved vertically and rotated horizontally. The table board is made from high-intensity synthesis panel, x-ray transmit, easy adjustment and easy use of c-arm make the table can be more capable for any operation. Senior PY foam material is optional for mattress.

The Electric operating table MEDS-99C uses electro-hydraulic systems to control all the movement.

Main Usage:

Electric operating table can be operated for clinical use.

Structure :Operating table consists of two parts: mechanical and electro-hydraulic control system. Depending on manual operation, the product can meet the requirement of posture in clinical operation.

Specifications:

Dimension of table top：

Overall Length………………………………………………………2050mm

Width…………………………………………………………………500mm

Dimension of section：

Head Section………………………………………………………  250×500mm

Back Section………………………………………………………..465×500mm

Waist Section………………………………………………………..75×500mm

Seat section………………………………………………………….550×500mm

Leg Section…………………………………………………………..600×240mm

Table top of from floor:

Min Height…………………………………………………………....580mm

Max Height……………………………………………………………930mm

Adujst…………………………………………………………………350mm

Range of movements：

Reversed Trendelenburg…………………………………………≥20°

Trendelenburg………………………………………………………≥15°

Lateral Til……………………………………………………………≥15°

Backward and Forward Movements……………………………≥350mm

Adjustment of sections：

Head Section Raised  from the horizontal…………………………≥45°

Head Section lowered from the horizonta…………………………≥90°

Back Section Raised from the horizontal…………………………≥75°

Back Section Raised from the horizontal…………………………≥30°

Leg Section Lowered from the horizontal…………………………≥90°

Leg section opened………………………………………...............≥90°

Back rise（When optional)…………………………………….......≥80mm

Horizonal ratation of tabletop………………………………...........0～180°

Lifting speed………………………………………………………....4～16mm/s

safe working load……………………………………………………250kg

Device safety sort:         I     B

IPX4 Ingress Protection：   IPX4

Power：                   （AC）220V，50Hz

Battery capacity:           ≥ 2.4AH

Accessories:
