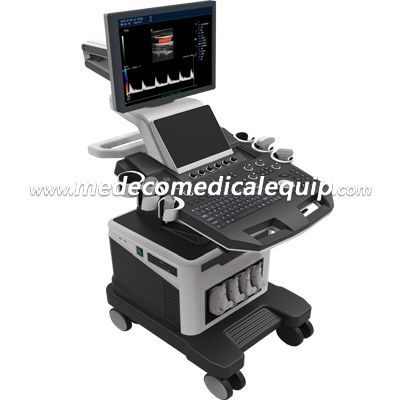

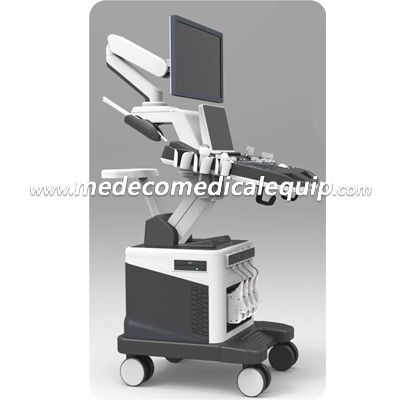

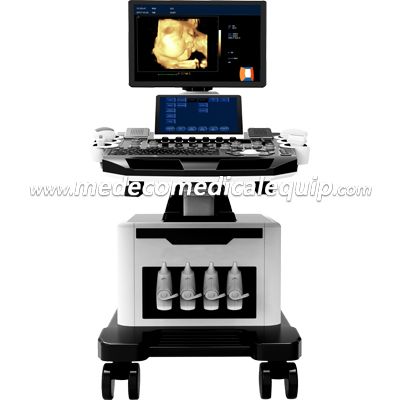

High-end image within easy reach ME-T6

High-end image within easy reach ME-T6

Main specifications and system overview

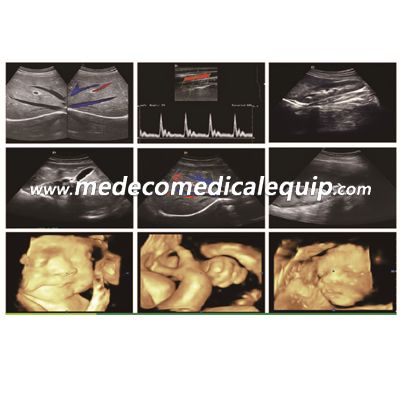

Device function configuration:

1) Imaging mode: Triple-synchronization, trapezoidal imaging

2) Full-digital 2D gray-scale imaging

3) Color Doppler flow imaging

4) Directional color energy Doppler imaging

5) Pulse Wave Doppler (PW) imaging

6) Continuous Wave Doppler (CW) imaging

7) Spatial composite imaging

8) Trapezoidal imaging

9) Wide area imaging

10)High Resolution Composite Imaging Technology

11) Tissue harmonic imaging (THI) technology

(support for abdominal, heart, high frequency and intracavitary probe)

12) Adaptive speckle suppression technology

13) Linear probe trapezoidal imaging technology

14) Convex array probe widening angle imaging technology

15) 2D, color, Doppler mode automatic optimization adjustment technology

16) Real-time triple synchronization

17) Intelligent picture-in-picture imaging mode (PIP)

18) Real-time 3D imaging mode

19) Rich package standard, in addition to the general measurement software package, its standard configuration also equipped with a wealth of peripheral blood vessels, gynecology, obstetrics, cardiology, urology, neonatal, orthopedic and other measurement and blood flow analysis package, to well meet the clinical needs.

20) The size and color of the measurement cursor can be adjustable

21) Measurement results display position, display color, font color can be adjustable

22) Built-in E-COM graphic management system: 560GB memory, can edit the Chinese / English ultrasound diagnostic report, embedded in the report of ultrasound diagnostic images, and direct storage, print, callback, query, built-in DVD burner and USB interface

23) Display: 19-inch high-resolution high-brightness ultrasound dedicated LCD monitor + 10-inch color LCD touch screen

24) The operation panel can be adjusted around the left and right ≥90 °, the implementation of the diagnosis of doctors and patients to share.

25) Probe socket ≥ 4, full active, to meet the application for general hospital use.

26) Stored images can be displayed directly on the display interface, dump to the flash disk and other storage devices.

Applications: abdominal, urology, obstetrics and gynecology, pediatrics / neonatal, superficial structure / small organs, musculoskeletal, cardiac and so on.

Main technical parameters:

1. 2D imaging mode:

1.1 Gray scale: 256 level

1.2 Gray scale map: ≥ 16 level, adjustable and visible

1.3 Dynamic range 20-280dB, adjustable and visible

1.4 Resolution: horizontal ≤ 1mm; vertical ≤ 0.5mm

1.5 Under B mode, the number of focal points: 1-6 focus for options, the focus position continuously adjustable

1.6 STC segment gain adjustment ≥ 8 segments

1.7 Tissue harmonic imaging: harmonic frequency ≥ 2

1.8 Ultrasonic line density: ≥ 256 Ultrasonic line can be adjustable

1.9 Preset conditions: ≥40 kinds, the user can customize the different organs to optimize the image of the pre-check conditions

1.10 Max scanning depth: ≥ 31.5cm, adjustable and visible

1.11 Scanning angle: ≥ 150 °, adjustable and visible

1.12 Wide image: support small organ probe

1.13 Adaptive speckle suppression: 0-100 adjustable.

1.14 Zoom function: the overall amplification, local amplification, M-type amplification (dynamic, frozen state can be interested in the region to do M-type sampling amplification)

1.15 Cine loop: ≥4800 frames

2. Color flow imaging mode:

2.1 Color gain: adjustable

2.2 Color frequency can be adjustable: ≥ 3 species

2.3 Sampling box: size and position adjustable

2.4 Color flow deflection ≥ 3 kinds of angle adjustable

2.5 Color map: 1-9 level

2.6 Color afterglow: 0-6 level

2.7 B / C split screen display

3. Energy Chart:

3.1 Directional Energy Chart

3.2 Energy Chart Gain: Adjustable

3.3 B / C split screen display

3.4 Energy Map: Level 1-8

3.5 Energy afterglow: 0-6 level

4. Doppler mode:

4.1 With Pulse Wave Doppler (PW) and Continuous Wave Doppler (CW)

4.2 PW blood flow measurement speed: the min measurable speed ≤ 0.2 cm / s, the max measurable speed ≥ 1500cm / s

4.3 CW blood flow measurement speed: the min measurable speed ≤ 0.6cm / s, the max measurable speed ≥ 7000cm / s

4.4 Sampling volume size: 1mm-40mm, adjustable

4.5 Sampling angle correction: -80-80 degrees

4.6 Spectrum gain: adjustable

4.7 PW Doppler frequency: ≥ 3 kinds, CW Doppler frequency: ≥ 15 kinds, can be adjustable

Real - time automatic Doppler envelope mapping and automatic measurement and analysis

4.8 Baseline: Zero shift adjustable

4.9 Scanning speed: adjustable

5. Measurement and analysis:

5.1 General measurements

5.2 OB&GYN measurements

5.3 Cardiac function measurement and analysis

5.4 Doppler flow measurement and analysis

5.5 Peripheral vascular measurement and analysis

5.6 Urology measurement and analysis

5.7 Orthopedic measurement and analysis

5.8 Automatic Doppler Flow Measurement and analysis

5.9 Number of user-programmable protocols, user-programmable formulas and tables.

5.10 Obstetric measurements: weight measurement formula ≥ 8 kinds of optional

6. Built-in graphic management system

6.1 You can edit the diagnostic report, embed the ultrasound diagnostic image in the report, and print directly

6.2 storage image format ≥ 4 kinds

6.3 DVD drive storage: readable and writable

6.4 input / output interface: VGA interface, video output input interface, S-video, parallel print interface, DICOM 3.0, USB

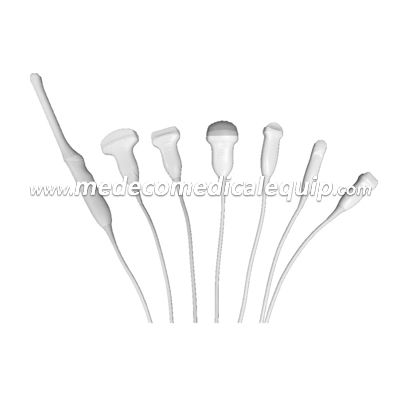

Probe configurations:

1. Abdomen convex array probe frequency: 2.0-5.0MHZ (frequency, harmonic frequency ≥ 5), the probe scanning angle of 20 ° ~ 85 °, adjustable visual.

2. linear array of small organs probe frequency: 6.0-12.0 MHZ (frequency, harmonic frequency ≥ 4). Probe scanning with trapezoidal imaging technology and two - dimensional beam deflection technology

3. the vaginal cavity probe frequency: Yin Chao probe 5.0-9.0MHZ (frequency, harmonic frequency ≥ 2) probe scanning angle 20 ° ~ 160 ° adjustable.

4. real-time three-dimensional (4D) volume probe: frequency: 2.0-6.0MHz, 4-band frequency adjustable.

5. the heart probe: frequency: 2.5-4.0MHz, 3-band frequency adjustable.
