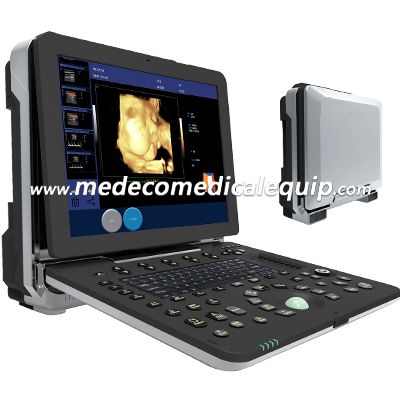

Portable Color Doppler 4D Ultrasound scanner ME-P6

Portable Color Doppler 4D Ultrasound scanner ME-P6

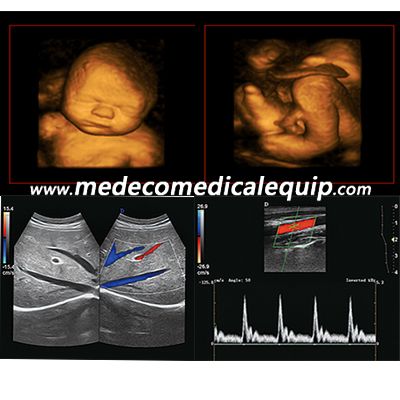

Main specifications and system overview

Configuration:

1）Full-Digital 2D gray scale imaging

2）Full-Digital Tissue Harmonic Imaging (THI)

3）Color Doppler blood flow imaging

4）Directional color energy Doppler imaging

5）Pulse Wave Doppler imaging (PW)

6）Continuous Wave Doppler imaging (CW)

7）Space compound imaging

8）Trapezoidal imaging

9）2D, color, Doppler mode automatic optimization adjustment technology

10）Real-time triple synchronizing

11）Adaptive speckle suppression technology

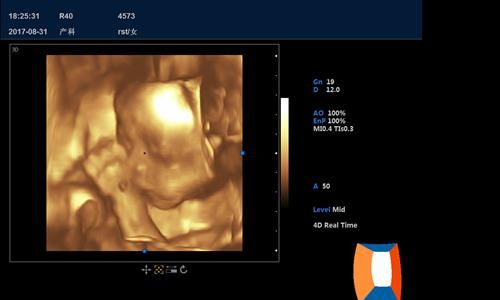

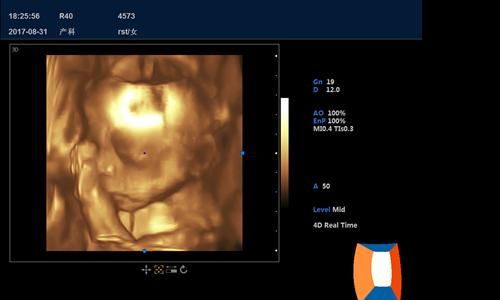

12）Real-time 3D imaging

13）Intelligent picture - in - picture imaging mode (PIP)

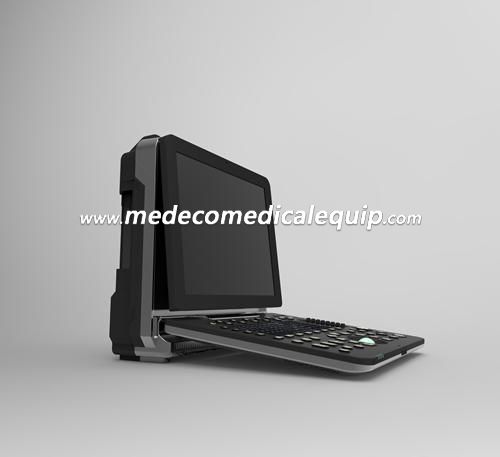

14）Monitor: 15 inch high resolution medical LCD monitor, adjustable angle

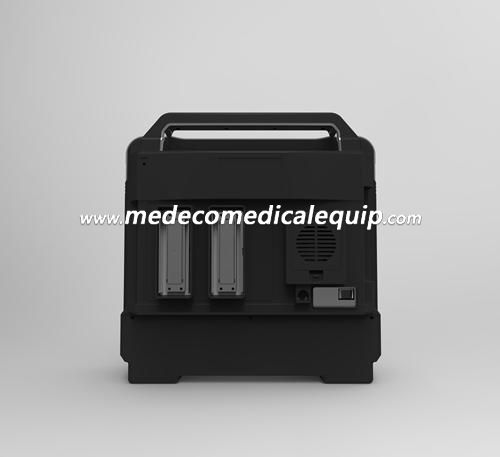

15）Probe connectors: ≥2  active

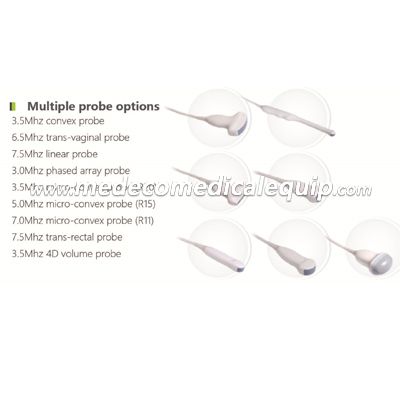

1 Multiple probe configuration:

1.1 Convex probe frequency: 2.0-5.0MHZ（multi-frequency, Harmonic frequency≥5 ）, probe scanning angle 20°～85°, visible and adjustable.

1.2 Linear probe frequency: 6.0-12.0MHZ（multi-frequency, harmonic frequency ≥4 ）, probe scanning with trapezoidal imaging technology and 2D beam deflection technology

1.3 Trans-vaginal probe frequency: 5.0-9.0MHZ（multi-frequency, harmonic frequency ≥2 ）, probe scanning angle 20°～160°, visible and adjustable.

1.4 Real time 3D (4D) volume probe frequency: 2.0-6.0MHz, 4 segments multi-frequency.

1.5 Phased array probe frequency: 2.5-4.0MHz, 3 segments multi-frequency.

Applications: abdominal, urology, OB&GYN,  paediatrics / neonatal, superficial / small organ, musculoskeletal, cardiology etc.

Main technical specification

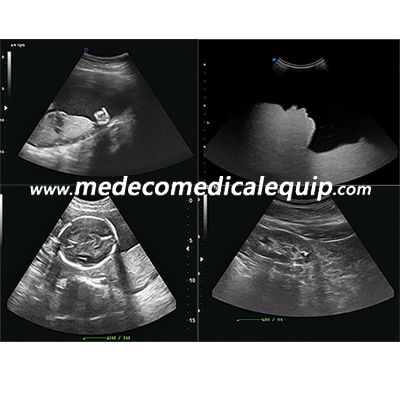

2  2D imaging mode

2.1 Gray scale: 256

2.2 Gray Map: ≥16  level, visible and adjustable

2.3 Dynamic range: 20-280db（visible and adjustable）

2.4 Resolution: Horizontal≤1mm; Vertical≤0.5mm

2.5  Under B mode, focus number: 1-6, focus position continuously adjustable

2.6  STC gain control ≥8  segments

2.7 THI: harmonic frequency ≥2  segments

2.8 Line density: ≥256, visible and adjustable

2.9 Preset: ≥40 kinds, users can customize the inspection conditions for the optimized images of different organs

2.10 Max scanning depth: ≥31cm, visible and adjustable

2.11 Scanning angle: 50°-100°, visible and adjustable

2.12 Cine loop ≥4800 frames

2.13 Adaptive speckle suppressio: 0-100 adjustable

2.14 Amplification: overall amplification, local amplification, M-type amplification（do M-type sampling amplification under both scanning or freeze state）
