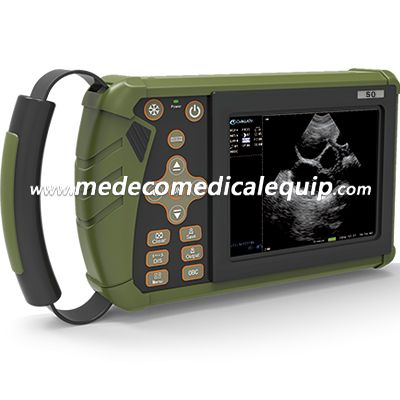

Mechanical Vet Ultrasound Scanner ME-VET5


Features:

1.Image storage: machine is with TF card and USB port, the picture can be stored directly into the TF card, the storage can achieve unlimited expansion.

2.Image processing: up / down, left / right, black / white invert, real-time freeze.

3.The images stored in the TF memory card can be recalled frame by frame or continuously.

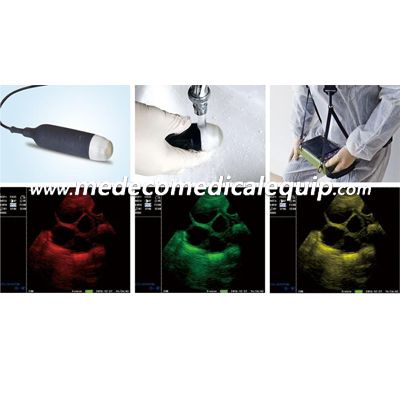

4.Pseudo color: 8 kinds.

5.Playback: 255 frames.

6.Large capacity pluggable mobile rechargeable lithium-ion battery with imported 2600mAh battery cells can work for 4-5 hours.

☆ Power protection function can extend battery life.

☆ One key to start the winter mode. In winter mode, the probe can be used directly without waiting for warm-up.

☆ 15 levels images pre-processing make the image more delicate.


Technical Specification:

Scanning mode: mechanical sector scan

☆ Frequency: 2.5MHZ、3.0MHZ、3.5MHZ、5.0MHZ
Display mode: B、B+B
Depth: 46-208mm,adjustable

Gain control: far field, near field, main gain

Frame frequency: 30frames/s

Grey map: 256
☆ Magnifications: 15 kinds

Monitor: 5.6inch LED

Measurement: distance,perimeter,area,gestational age,etc.
Extend ports: Mini USB port、TF card slot.
Power consumption: 13W(working in non-charging state)/25W(working in charging state)

Machine dimension: 240X120X45mm
Machine weight: 800g


Standard configuration:

◆machine(including one lithium battery)

◆3.5MHw waterproof mechanical sector scan probe

◆ 8G TF memory card

◆Operation manual

◆Adapter

Optional:

◆Extra lithium battery

◆Adapter for car

◆External charger
