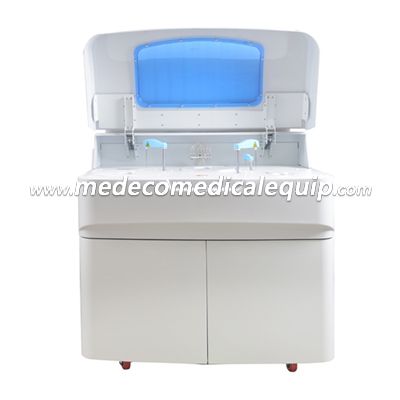

Auto Chemistry Analyzer ME-400(CRYSTAL)

Inquire Now Next Product

documents & resoures

Auto Chemistry Analyzer ME-400(CRYSTAL)

Features:

Real-time display reagent remaining volume.
45 Reagent positions.
60 Sample positions (90 sample positions optional).

120 Reaction cuvettes (reusable).
400 tests per hour with STAT function.
Auto 7-step washing system.
One sample probe, one reagent probe, anti-collision
function, liquid level detection function.
Optional built-in sample & reagent barcode reader

Model	ME-400(CRYSTAL)
Type	Discrete, fully automatic
Throughput	400T/H
Analysis Method	End-point, Fixed-time, Rate, Turbidimetry
Certification	CE, FDA, ISO9001, ISO14001, ISO13485
Sample unit	Sample Settings	60 or 90 sample positions, including calibration, quality control and emergency
	Sample Volume	2ul ~70ul (0.1ul stepping)

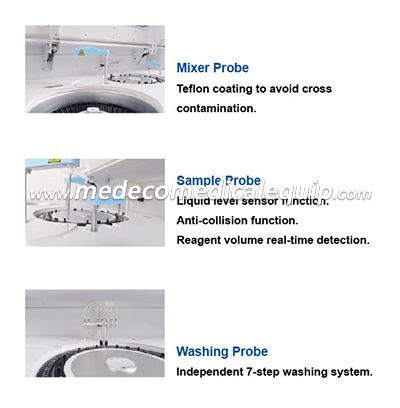

	Sample Probe	Teflon coating probe, Liquid level sensor, Anti-collision function
	Probe cleaning	Automatically wash interior and exterior
	Analysis Items	Analyzing maximally 45 items at the same time
Reagent unit	Reagent Position	45 refrigerated reagent positions
	Reagent Volume	20~350μl (1μl stepping)
	Temperature Control	2℃~8℃cooling for 24 hours
	Reagent Probe	Teflon coating probe, Liquid level sensor, Anti-collision function
	Probe Washing	Automatically wash interior and exterior

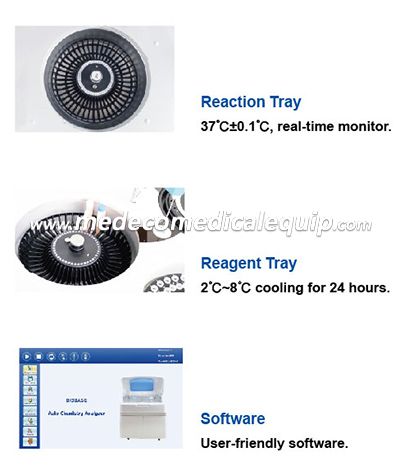

Reaction unit	Temperature Control	37℃±0.1℃, real-time monitor
	Cuvettes	120 reusable cuvettes (optical path length 6mm)
	Mixer Probe	After adding reagent and sample, mix immediately
	Washing Probe	Automatic water cleaning and drying system
	System Adjustment	System can record the blank value and get more, accurate results by deductingblank base value of each cuvette
Optical System	Light Source	12V/30W halogen-tungsten lamp, 2000 hours lifetime
	Receiver	8 precision photo receivers
	Wavelength Range	340, 405, 450, 510, 546, 578, 630, 700mm
	Linear Range	0.000~3.000Abs
Calibration and QC	Calibration	One-point, two-point, multi-point, factor
Calibration and QC	Quality Control	Inserting quality control at random, with reaction curve checking each test items clearly
Software	Emergency Function	Emergency samples can be placed in the sample tray at any time
	Software	Windows 7/8/10, LIS system available
	Data Processing	Reaction curve and data display function
Others	Power Supply	AC110/220V±10%, 60/50Hz
	Interface	LAN Port
	Consumption	500w
	Package Size(WDH)	12189581431mm
	Net/Gross Weight	242kg

Auto Chemistry Analyzer ME-400(CRYSTAL)
