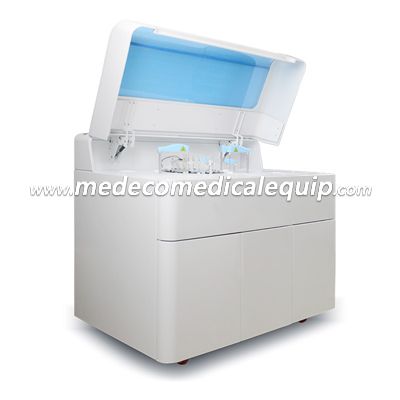

Auto Chemistry Analyzer ME-800(EMERALD)

1. Fully automated, Discrete, Random access, STAT priority.

2. Close or open system setting, supported reagents of different brand.

3. Precision sampling pumps, sample step by 0.1 ul, reagent step by0.5 ul

4. 24 hour non-stop working, convenient emergency function with inserting emergency at random.

5. Implementing analysis of ultra-trace reaction solution to 100 ul, and saving more reagents.

6. Discrete cuvette, preventing from cross-infection, and be washed and reused, making sure accurate result and save cost.

7. Software is easy to learn and use. And test report can be printed online.

8. Perfect function of quality control management is convenient for users to manage the clinical test result.

9. Detecting in the whole reaction process with reaction curve, convenient for users to

monitor thoroughly and scientifically analyze the detection data.

10. Supporting software can implement the function of detecting surplus reagent.

Overall Performance	Model	ME-800(EMERALD)
	Type	Random, Discrete, Fully automatic
	Test Speed	800T/H, 1200T/H with ISE
	Analysis Method	End-point, Fixed-time, Rate, Turbidimetry
	Programming Items	Programmable for any test items
	Certification	CE, FDA, ISO9001, ISO14001, ISO13485
Sample unit	Sample Position	150 sample positions, including 60 refrigerated positions for calibrator&QC, dual tray
	Sample Tubes	Original blood collection tube, micro tube, plastic tube, etc
	Sample Types	Serum, plasma, urine, CFS, etc
	Sample Volume	2μl~70μl (0.1μl stepping)
	Sample Probe	Liquid level sensor function, anti-collision function
	Probe Cleaning	Automatically wash interior and exterior, cross contamination rate <0.1%
	Analysis Items	Analyzing maximally 100 items at the same time
Reagent unit	Reagent Position	180 reagent positions, dual tray
	Wash Solution	Washing solution can be installed in any position, including needle, stir bar washing solution and water bath disinfectant
	Reagent Volume	20~350μl (0.5μl stepping)
	Temperature Control	2~8℃cooling for 24 hours
	Reagent Probe	Liquid level sensor function, anti-collision function
	Probe Washing	Automatically wash interior and exterior
	Analysis Items	Analyzing maximally 100 items at the same time
Reaction unit	Reaction Volume	150ul~550ul Reaction Temperature 37℃
	Temperature System	Water bath, real-time temperature display
	Cuvettes	160 positions, PMMA cuvette (optical path length 5mm)
	Mixer Probe	Independent stir bar, nanotechnology, highly polished, automatic frequency conversion
	Washing	Automatic water cleaning and drying system
	System Adjustment	System can record the blank value and get more accurate result by deducting blank base value of each cuvette
Optical System	Light Source	Halogen lamp (Grating optional)
	Receiver	Holographic flat field concave grating diode array detection
	Wavelength Range	12 wavelengths from 340 to 800nm
	Linear Range	-0.3~3.3 Abs
	Stray Light	<0.1% or Abs >3.0
Calibration and QC	Calibration Method	Linear calibration: K factor, two-and multiple linear Nonlinear calibration: spline, polynomial, logarithm, etc
Calibration and QC	Quality Control	Auto QC, westgard, cumulative sumcheck, twinplot
Software	STAT Function	Emergency samples can be placed in the sample tray at any time
	Computer System	Windows 7/8/10, LIS system available
	Online	Full bi-directional communication possible
	Data Processing	Reaction curve and data display function
Others	Water consumption	Deionized water<25L/H
	Power Supply	AC110/220V±10%, 60/50Hz
	Package Size	17189291434mm
	Gross Weight	340kg
