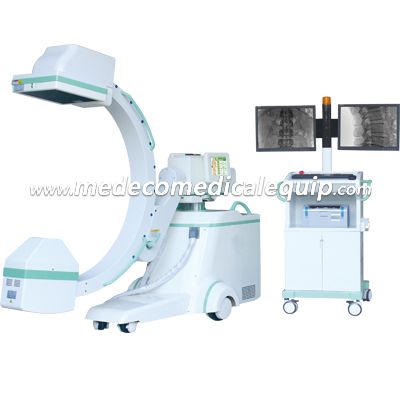

High Frequency Mobile Digital C-arm System MEX7000A

I. Application

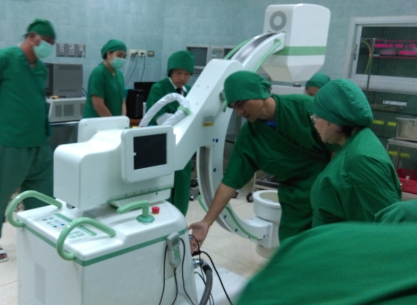

This machine is widely applied in surgical department, orthopedic surgery, urinary surgery, Spinal surgery, abdominal surgery, Pain Management, Cardiology, Gastroenterology dept., gynae and operating room etc.

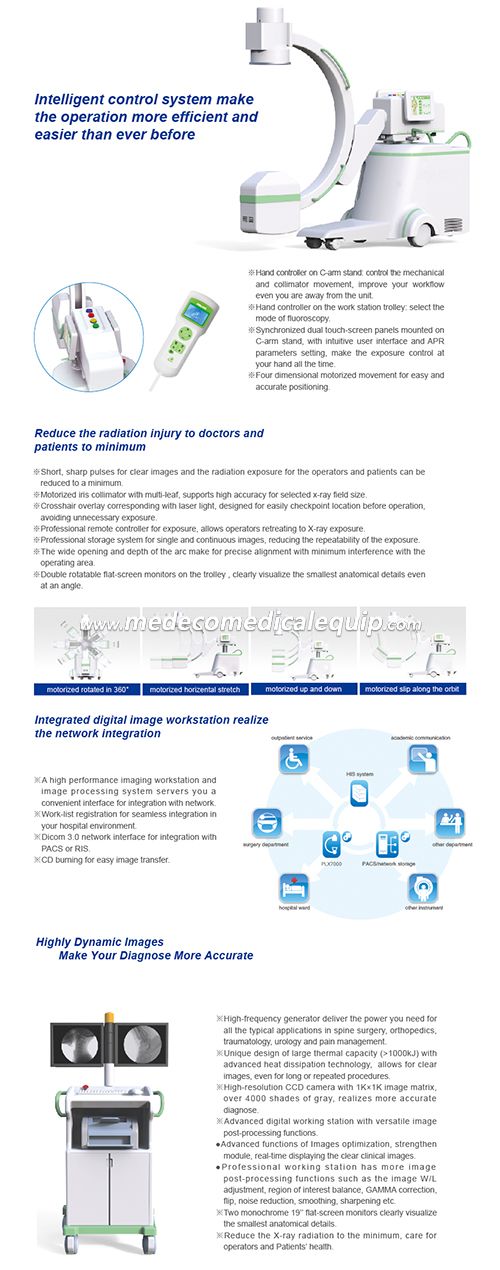

II. Features

1. High-frequency generator with Super High Power and micro-focus, optimizes digital images.

2. Leading world-class continuous pulse fluoroscopy, intelligent exposure control, achieving extremely low radiation dose.

3. Multi-working patterns to meet various clinical needs.

4. Multi-leaf and vertical light control reduce the soft X-ray effectively and the skin dose dramatically.

5. Imported well-known image intensifier and digital CCD camera provide high-quality and high-resolution images.

6. High-resolution and dual medical LCD monitors improve image quality dramatically.

7. Powerful digital graphic workstation with standard configuration of DICOM 3.0 connected to network perfectly, supports dual registrations of Worklist registration and manual registration.

8. Workstation has high-capacity digital storage function, and fluoroscopy and digital spot film are stored in lossless digital format. It has powerful processing capabilities like edge enhancement, multiple image, gamma correction, cineloop, Window center-window width, record etc.

9. Four-dimensional electric motion control, accurate positioning, flexible and smooth; large rack design provides a huge space and more comfortable surgery environment.

10 .Two panels of human graphical LCD touch screen, intelligent and fast operation; Dual kinetic control system and double foot brake design for exposure, meeting the demands of clinical operations greatly.



1Main frame of C-arm (Four-dimensional electric)1
2X-ray generator and high frequency inverted power supply1
3Toshiba 9’’ image intensifier1
4Medical Mega-pixels digital CCD camera1
6Digital Acquisition and Processing workstation1
719’’ 1M medical LCD monitor2
8Imported minigroove grid1
9Electric adjustable collimator  1
10Human graphical LCD touch screen  2
11Hand parameter controller 1
12Hand Mechanical movement controller2
13Foot brake for exposure2
14Red light cross localization1
15Film hanger1

IV. Specification

CategoryItemMain Contents
Electrical PerformanceHigh Frequency Inverter Power SupplyOutput Power: 6.0kW          Inverter Frequency:60kHz
Automatic/ Manual Continuous FluoroscopyTube Voltage:40kV~125kV     continuous adjustment
Tube Current:0.3mA~4mA      continuous adjustment
Automatic/ Manual Intensifying FluoroscopyTube Voltage:40kV~125kV     continuous adjustment
Tube Current:0.3mA~8mA      continuous adjustment
Radiography Tube Voltage, mA
40kV~125kV  120mA
X-ray TubeX-ray Tube Special For High FrequencyRotary Anode Focus: 0.3/0.6mm
Anode Thermal Capacity:212kJ
Image SystemImage IntensifierTOSHIBA 9" image intensifier
CCD CameraMedical Mega-pixels digital CCD camera
CCUReal time collection, horizontal, vertical mirror image, recursive noise reduction can be adjusted continuously, multi-images storage, image patching, last image freeze
Monitor19" 1M medical LCD monitor
Work Station SoftwareStorage without damage, multi-images display, image W/L real time adjustment, grayscale switch, region of interest balance, GAMMA correction, flip, noise reduction, intensifying, smoothing, sharpening, compression, zoom in, measurement, remark, picture-text typeset print, expert template, DICOM image transmit, DICOM image print, cineloop, image imprinting, Worklist registration etc.
Structure PerformanceDirection Wheel, Main WheelDirection wheel 360°rotation, main wheel ±90°rotation
C-armMotorized forward and backward movement: 200mm Motorized rotation around horizontal axis: ±180°
Motorized slip on orbit: 120°(+90°~ -30°)Motorized ascending and descending of pillar: 400mmRotation around vertical axis: ±15
SID:1060 mm  Open:860 mm    Arc depth:700 mm
