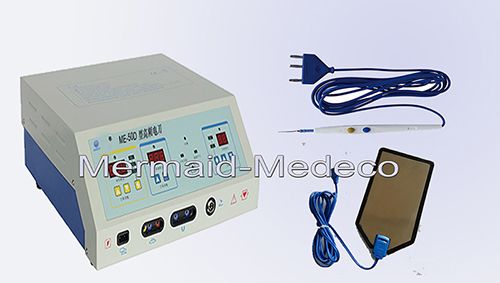

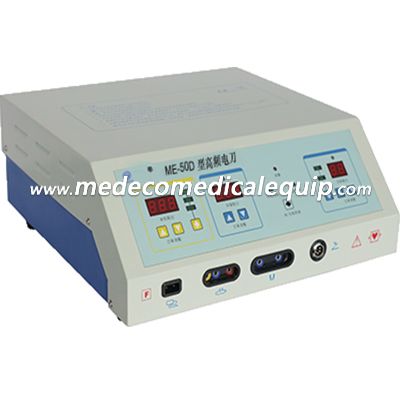

Welding Surgical Generator Surgical Cutting Machine ME-50D


Specifications:
1. bipolar & monopolar
2.5 modes
3.for general surgery
4.CE, ISO9001, ISO13485
5. Classification: Class I Type CF
6. Main Frequency: 625kHz±5% Modulate Frequency: 25kHz±5%
7. Working Mode: Intermittent and continuous working, 10s/30s
8. Output power and peak voltage:

Spec. Mode
Output Power
Power Range
Resistance
Monopolar Pure cutting
5~350W
500Ω
Monopolar Blend 1
5~250W
500Ω
Monopolar Blend 2
5~200W
500Ω
Monopolar Contact Coagulation
5~200W
500Ω
Bipolar Standard Coagulation
2~70W
150Ω

9. Automatic Storage: The working mode and output power set during operation can be stored in the unit for 100 years.
10. High Frequency Leakage Current

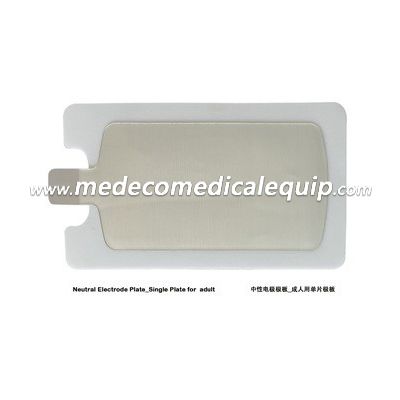

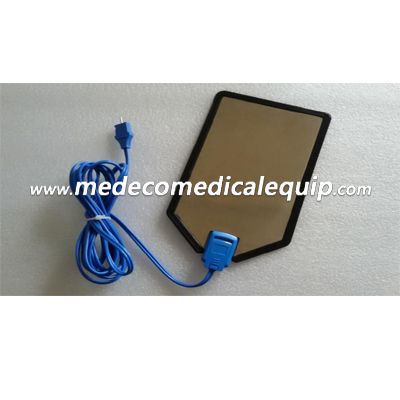

The neutral electrode is isolated from the earth during the high frequency operation, the High Frequency Leakage Current <150mA.
11. Output Channels: Monopolar: 1 channel, Bipolar: 1 channel.
12. Output Setting and Indicating: The output is set by key pressing in different area according to different working mode, it is displayed digitally.
13. Output Indicating
Visual Indicator: Monopolar Cutting - Yellow / Coag - Blue / Bipo - Blue Audio Indicator: When the power is output, there is an audio indicator, the volume can be adjusted.
14. Error Indicating
Visual Indicator: The red indicator indicating the error and danger detected by self-detecting or monitoring (ALARM);
Audio Indicator: When alarming, there is an pulse audio indicating, this volume cannot be adjusted.
15. Output Control
Monopolar: Hand Control, Foot Control; Bipolar: Foot Control, Automatic Control.
16. Main Supply: AC220V±10% 50Hz±2%
17. Dimension: 410mm×320mm×155mm
18. Net Weight: 5 kg
19. Operation Condition:
Environment Temperature: +5°C~+40°C
Relative Humidity: ≤85%
20. Transport and Storage Condition:
Environment Temperature: -40°C~+50°C
Relative Humidity: ≤90%

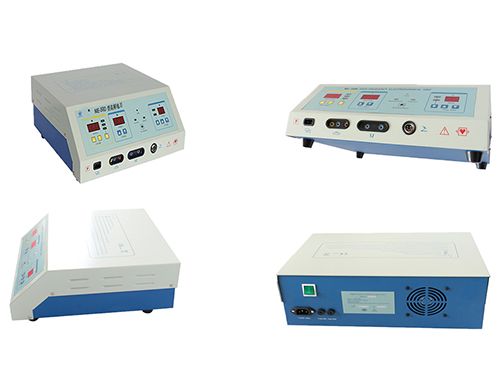

Welding Surgical Generator Surgical Cutting Machine ME-50D
