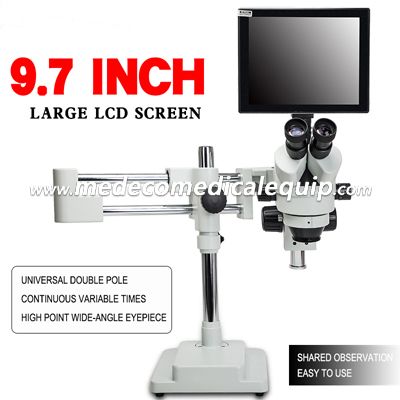

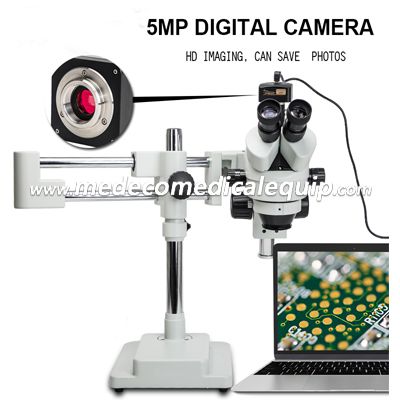

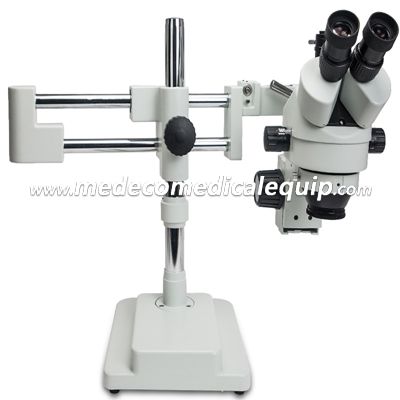

Trinocular double boom stand stereo zoom 3.5X-180X microscope camera MEXTL-165-W

Share
documents & resoures

Trinocular double boom stand stereo zoom 3.5X-180X microscope MEXTL-165-W


Features:

Theory:Stereo Microscope

Drawtube:Trinocular

Magnification:7X-45X(3.5X-180X)

Application:Metallography

Viewing head:Trinocular Head Inclined

Objective:0.7X-4.5X

Eyepiece:WF10X/20mm

Illumination:LED

View field:5mm-30mm

Working distance:30mm-160mm


MEXTL-165 series zoom-stereo microscope has long working distance ,large depth of focus,clear imaging,wide field and other features.The zoom mode is the double hand wheel level zoom mode, with the eliminating gap zoom design and reinforcing transmission system design,make sure that the stable clear imaging and smooth and comfortable lifting acquired while using.
    This product can be widely used in machinery and electronics,instrumentation,precision parts,enviroment protection of forestry and enviromental,criminal identification,detection of jewerly and many other industries and fields,and it is especially suitable for industry production line's long time using.

Magnification: Continuos Zoom 7X-45X  / 3.5X-180X
Eyepiece: High eyepoint WF10X/φ20mm
Viewing head: Compensation trinocular head, 45°inclined, interpupillary distance: 55-75mm
Diopter: Both eyepiece tubes dipter adjustable ±6
Working distance: 30mm-160mm

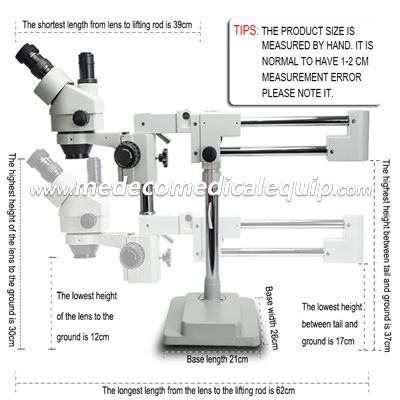

Bracket: L type column bracket, 0-280mm lifting range
Base: Large V type base, 200x245mm
Packing: foam + carton

Optional:  1PCS 2X Auxillary Objective

                 1PCS 0.5X Auxillary Objective

                 1Pair of WF20X/10mm Eyepieces


Packing List:
1PCS Trinocular Stereo Microscope head
1Pair of Wide Field High-Eyepoint WF10X/23mm Eyepieces
1Pair of WF20X/10mm Eyepieces(Optional)
1PCS Double Boom Bracket
1PCS Big Size Pillar Table Stand
1PCS LED Ring Light with Adapter
1PCS Focusing Rack
1PCS Dust Cover
1PCS 2X Auxillary Objective   (Optional)
1PCS 0.5X Auxillary Objective   (Optional)

Packaging Details:

Polyfoam protection+Strong carton(Standard export packing)
Carton size:52cm*51cm*32cm
Gross weight:27KG/pc
Net Weight:25KG/pc
