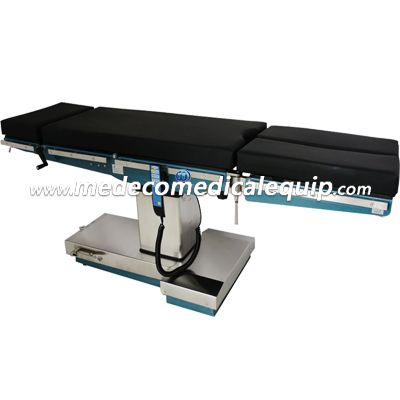

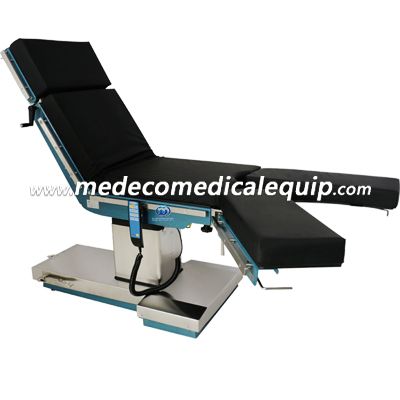

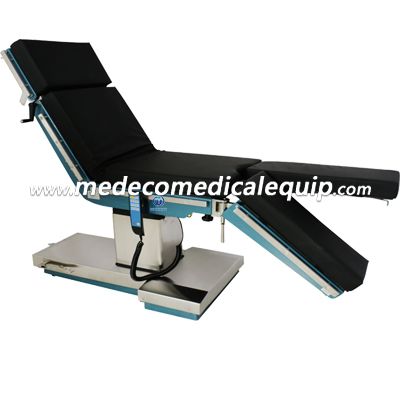

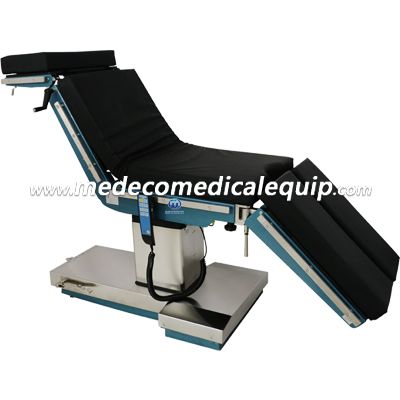

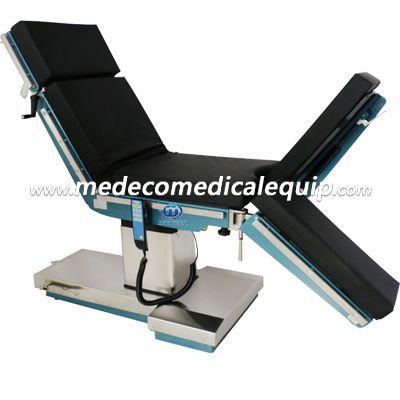

Electro hydraulic operating table ME-608-A (T shape base)

Electro hydraulic operating table ME-608-A (T shape base)

Parameter:

Table board frame is casing by one-time forming of  antiwear steel the base and lifting column is made of 308 stainless steel, Memory foam mattress, domestic hydraulic system.

Tabletop Length:................................................................................... 2000 mm

Tabletop Width:..................................................................................... 500 mm

Tabletop Width（with side rails）: .........................................................560 mm

Height Adustment(without matress): ......................................................700 mm-1000 mm

Trendelenburg/Reverse Trendelenburg: ...............................................30°

Left/Right Tilt: ........................................................................................20°

Manual Adustment of Head Plate(up/down): .........................................50°/90°

Back Plate(up/down): ............................................................................75°/40°

Foot Plate(up/down):............................................................................. 30°/90°

Foot Plate(Horizontal):........................................................................... 90°

Longitudinal Slide of tabletop in single direction:................................... 300 mm

Manual Adjustment of Built-in Kidney Bridge:........................................ 0-120 mm

Standard Accessories Configuration:

Polyurethane Mattress...........................................................................1  set

  Manual Controller.................................................................................1  piece

Lateral Support...................................................................................... 2 pieces

Shoulder Support ...................................................................................2 pieces

Arm Plate ...............................................................................................2 pieces

Leg holder...............................................................................................2 pieces

Anesthetic Screen Frame.......................................................................1 piece

Joint Adapter...........................................................................................2 pieces

Fixer(A-type round)................................................................................3 pieces

Power Supply(European standard or American Standard )....................220V  50Hz
