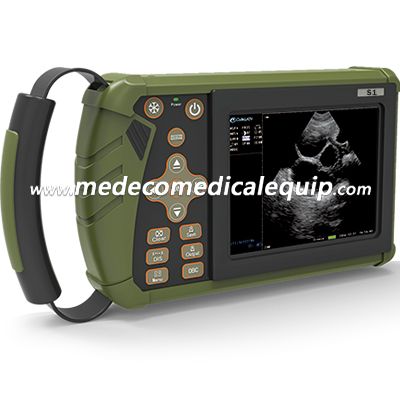

Mechanical Vet Ultrasound Scanner ME-VET6

Mechanical Vet Ultrasound Scanner ME-VET6

Perfect Ergonomic Design

Compact, sophisticated, portable

5.6 inch LED display

Lightweight body

Soft switching on/off

User-friendly operation interface

Simple and beautiful operation panel

Fast, convenient and flexible touch-type keyboard operation

Advanced Technology and Function

Advanced digital signal processing technology

Leading digital beam former technology

NC dynamic frequency scanning technology

Real-time point by point dynamic focusing reception technology

Real-time dynamic aperture imaging

Technical Parameters

Focus: three sections electronic focus, support point by point focus

Gain adjustment: main gain, near and far field adjustment can reach 255

15 levels contrast and brightness adjustment

Frame correlation: 15 adjustable

Probe: 3.5 MHz electronic convex array probe

Scan mode: convex array

Scanning depth: 57-230mm, 15 levels adjustable

Cine loop: 255 frames

Built-in battery: Rechargeable lithium-ion battery, imported 2600mAh standard batteries scan sustain for more than 4 working hours

Display mode: B, B + B

Gray: 256 levels

Pseudo color: 8 kinds

Image magnification: 15 levels magnification

Screen size: 5.6-inch high-definition LED screen

Measurements: distance, perimeter, area, volume, gestational age

Image processing: up / down, left / right flip, pseudo color processing, frame correlation, focus conversion

Gain regulation: Near field, far field, main gain dynamic adjustable continuously

Interfaces: Mini USB interface, TF card interface

Machine size: 240X120X45mm

Power consumption: 25W

Weight: 800g

Standard configuration:

◆ machine (including a lithium-ion battery)

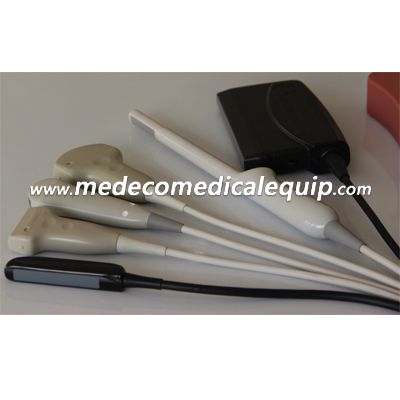

◆ 3.5MHZ electronic convex array probe

◆ User's Manual

◆ Adapter

◆ 8G TF memory card

Optional:

◆ 7.5MHz high-frequency linear array probe,

◆ 6.5MHz rectal probe

◆ 7.5MHz back fat probe

◆ 5.0MHz micro convex probe

◆ Lithium-ion battery

◆ Car adapter

◆ External charger

◆ Horseshoe converter
